PROSTAT Q007-T Common Point Ground Connector
Triple receptacle Grounding Cube Provides an ESD ground path to a previously tested electrical outlet for up to three different ESD Ground Circuits

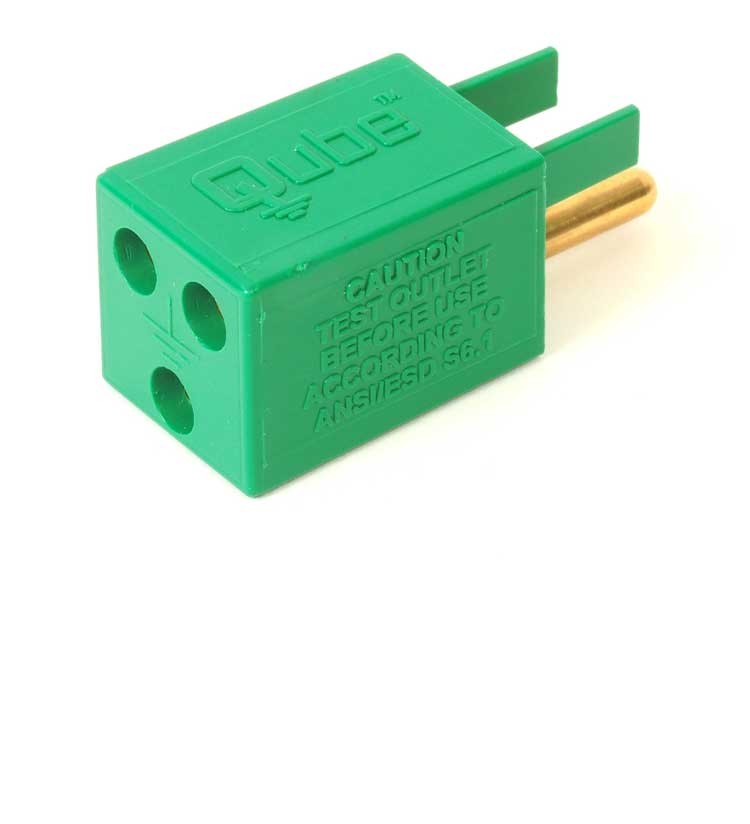

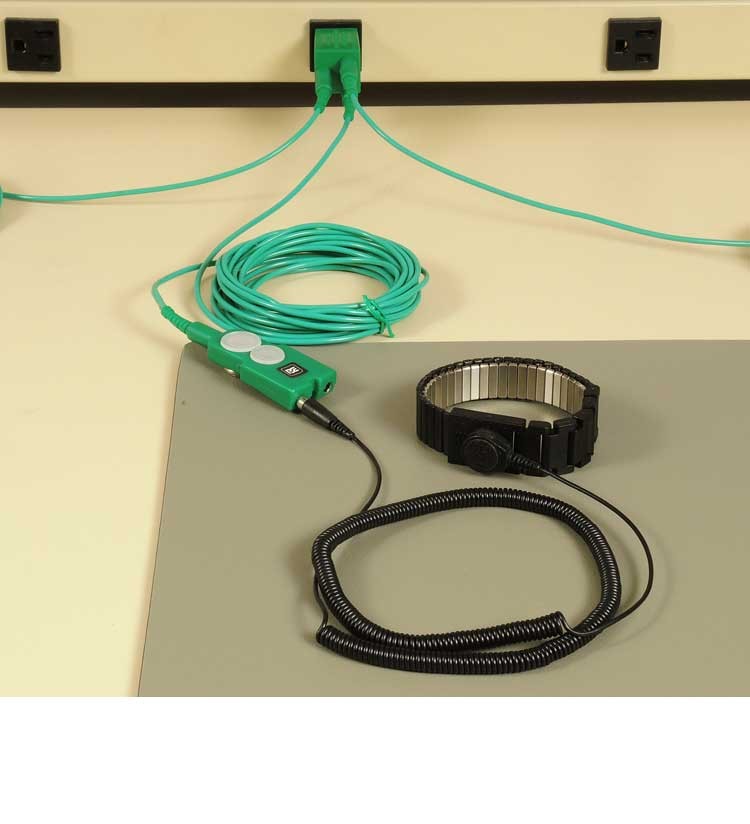

The Prostat Q007B Qube™ replaces ordinary electrical grounding devices with a convenient, cost effective means to connect several ESD controls to a single grounded electrical outlet. Use the Q007B Qube™ to ground workstations, mats, wrist strap & testers, instruments, and other ESD control products to a pre-tested facility electrical ground. It consists of a robust multi receptacle frame encased in fire retardant ABS with a solid brass grounding pin.
- Recommended for use on tested electrical outlets
- Replaces expensive grounding blocks and circuit indicators
- Convenient connection for ESD grounding
- Comes in several grounding configurations

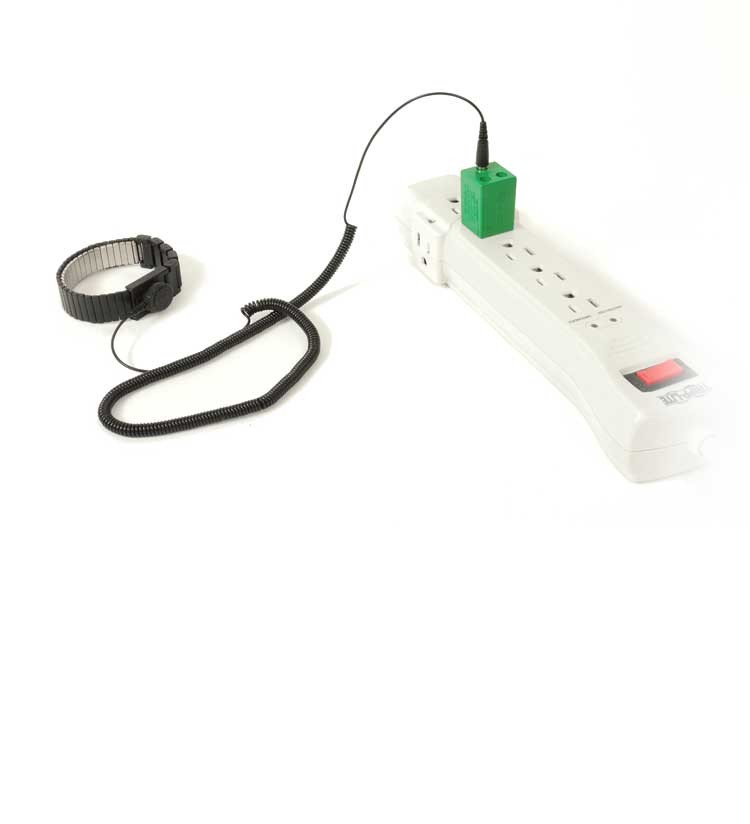

- Use with an ESD wrist strap and ground cord for work surface grounding
- Provides ESD grounding anywhere
- Made from Non-flammable materials
- Three ESD ground connection jacks on each Cube
CAUTION: For your safety, test your electrical outlet before use per ANSI/ESD S6.1.
| DIMENSIONS (LxWxH) | 2.12" x 0.9" x 0.9" (5.385cm x 2.286cm x 2.2286cm) |
| CASE MATERIAL | Fire Retardant ABS |
| COLOR | Green |
| CONFIGURATION | 3 standard banana jack inputs, Brass Grounding Pin, 2 FR ABS Spades |
| Order code | Type | Place an order |
|---|---|---|
| Q007-T | Common Point Ground Connector | {Q007-T} |
