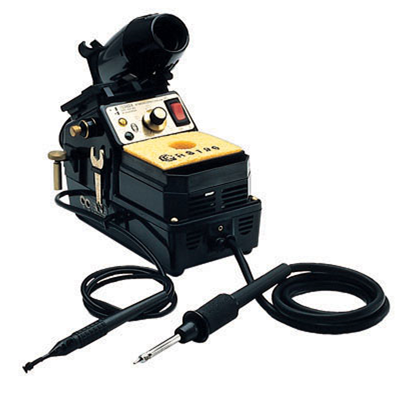

1036DX/B-230
- A deluxe self-contained hot air station with versatility to adjust to either hot air or contact soldering from the same handle
- Use to rework Gullwings, J-Leads, PLCC's and small outline components
- Small hand tool is light and easy to use
- Uses a wide variety of nozzle sizes and general purpose soldering tips
- Small vacuum pick up tool included
- ESD safe
- 18 month warranty
- lead free
| Contents | |
|---|---|
| 1036DX | Self-Contained Deluxe SMT hot air station with LU26 hot air tip and LT375 soldering tip |
| PD533 | Tool pod for hot air tool |
| LP250 | Pick-Up tool for SMD components |
| PD532 | Tool holder for pick-up tool |
| SH230 | Sponge holder includes RS199 cleaning sponge, RS243 leveling pad, LN230 sponge liner |
| Accessory Kit | |
|---|---|
| WT620 | Tip wrench, 1/4" socket |
| WT623 | Tip wrench, dual open end, 1/4" & 3/4" |
| WT624 | Tip wrench, dual open end, 1/4” & 5/16” |
| ST800 | SMD helper (includes RB642 shim blade and WS630 pull wire) |
| WP556 | WIGAPRY® mini screwdriver and calibration aid tool |
| Specifications | |
|---|---|
| Power Requirements | 230V, 50Hz |
| Power Rating | 18W - 160W |
| Heater Rating | 24V, 53W |
| Weight | 1,9 kg |
| Overall Dimensions | 104 mm x 216 mm x 254 mm |
| Temperature Range | 205°C - 427°C |
| Temperature Regulation | ±3ºC |
| Tip-to-Ground Voltage Leakage/Resistance | < 2mV / < 2 ohms |
| Order code | Type | Place an order |
|---|---|---|
| 1036DX/B-230 | - | {1036DX/B-230} |
