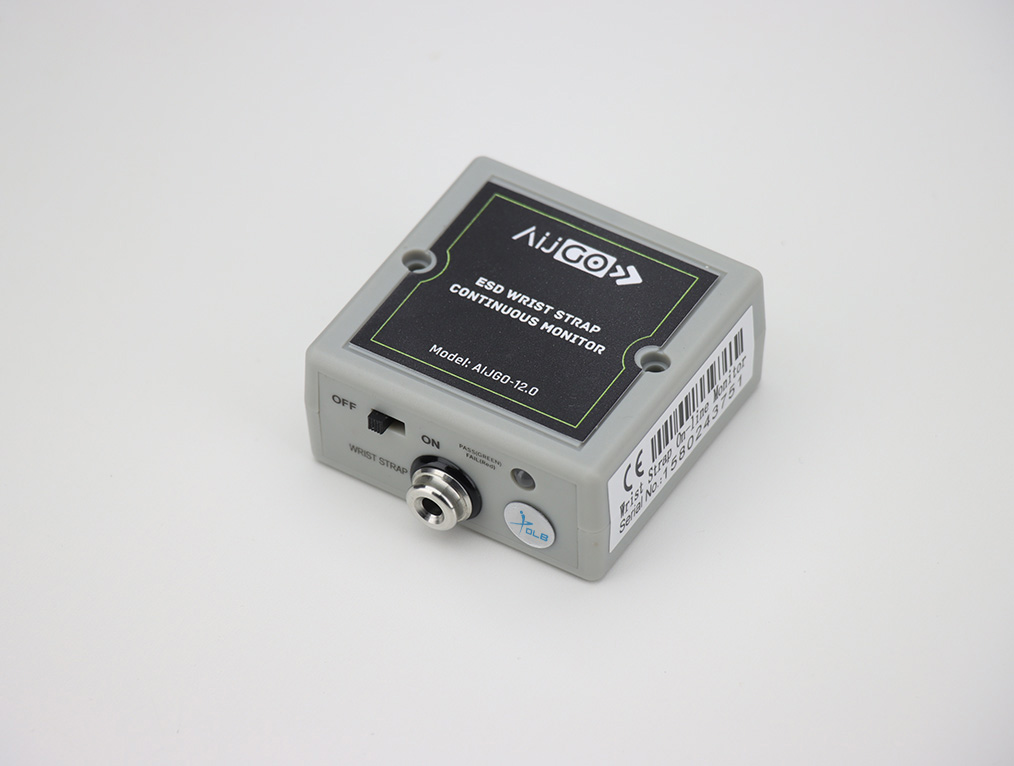

AIJGO-12.0 Wrist strap monitor
The AIJGO 12.0 wrist strap monitor is designed to monitor the operation of a wrist strap grounding system for a single operator.
- Stainless steel 2-in-1 plug with 10 mm male stud and 4 mm banana plug socket for wrist strap connection
- 1 LED that indicates the correct (GREEN light signal) or incorrect (RED light signal) wrist strap system resistance
- Built-in speaker for sound feedback
CE declaration
We declare that the AIJGO-12.0 product complies with the requirements of IEC 61340-5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety).

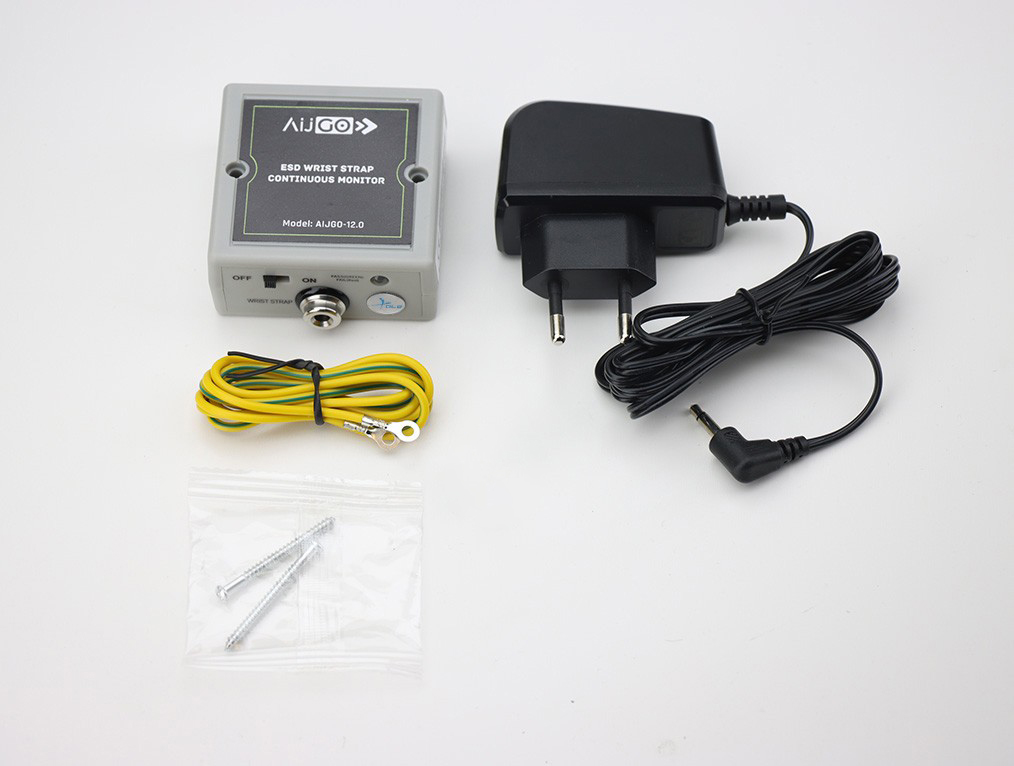

The product and its accessories
- Wrist strap monitor
- Power adapter
- Output voltage: 6,0 V DC
- Output current: max. 500 mA
- 1 meter long cable with cable lug endings (maximum current: 1 A)
- 2 pcs 35 mm long screw for fixing the wrist strap monitor
- Instruction manual
| Accuracy: | ±10% |
| Test voltage: | 6 V DC open circuit |
| Test current: | <1 microamper |
| Size: | 67 x 60 x 29 mm |
| Weight: | 50 g |
| Environmental operating conditions: | |
| Temperature: | 20 oC – 30 oC |
| Humidity: | max. 70% |
| Wrist strap system resistance control limit: | <5 MΩ |
| Order code | Type | Place an order |
|---|---|---|
| AIJGO-12.0 | Wrist strap monitor kit | {AIJGO-12.0} |
