AIJGO-34/COMP Personal grounding tester with platform
The AIJGO-34/COMP is a tester for checking personal grounding before entering an ESD protected area (EPA). It may be a good choice if you want to identify persons entering the site. Tester with LIGHT BAR system – such AIJGO products have a steel touch button, the measured results are indicated by LED lights. Type with COMPLEX system – these testers are supplied built-in in an entrance gate with turnstile. COMFORT system product – such AIJGO devices have touch button and RFID reader, an RFID card is required for use, which includes the type of test to be used.
The tester is supplied with manufacturer’s calibration certificate, platform, double dual foot electrode and entrance gate with turnstile.
AIJGO-34/COMP PERSONAL GROUNDING TESTER
WITH PLATFORM, DOUBLE DUAL FOOT ELECTRODE, RFID READER, LCD DISPLAY, OPERATING SOFTWARE AND ENTRANCE GATE WITH
| ABOUT THE PRODUCT |
- Tester for checking personal grounding before entering an ESD protected area (EPA)

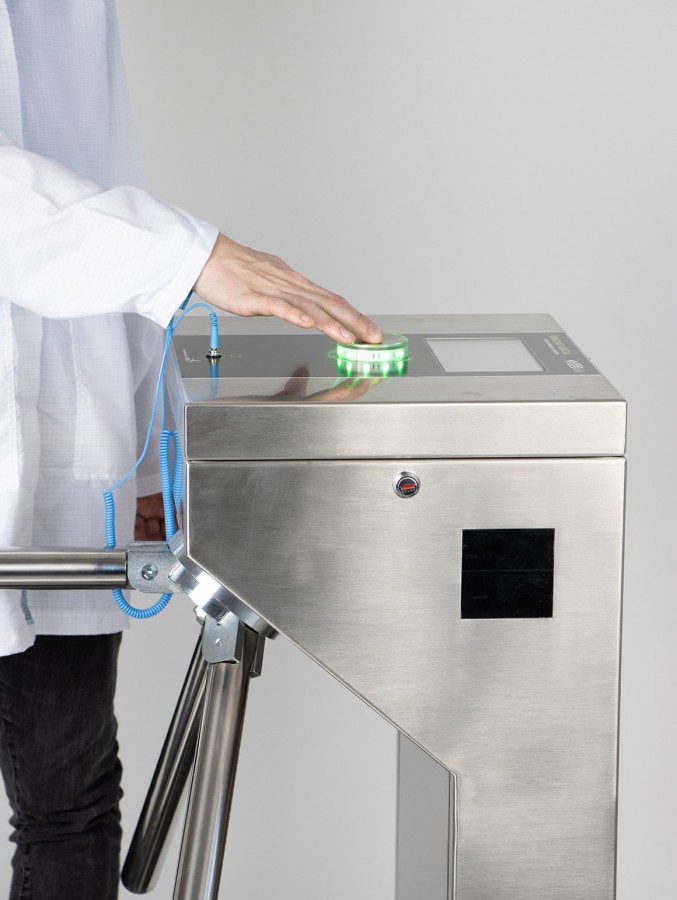

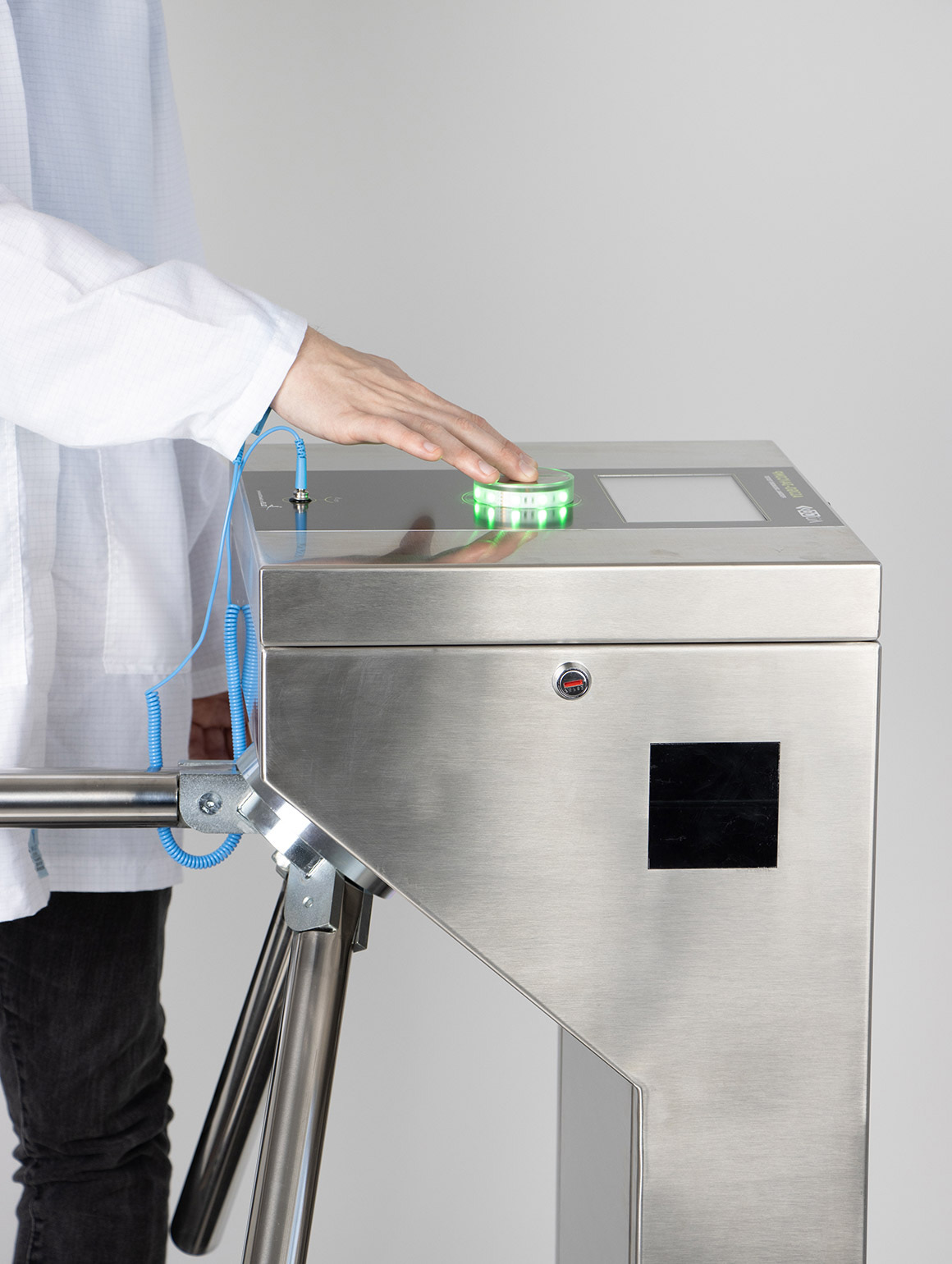

- Testing footwear system and wrist strap/groundable ESD smock system at the same time
- Can be used to test a groundable ESD smock system
- Test result indication on LCD display, with LED light and sound
- The measured results are stored on an internal SD card
- It is also possible to configure it so that a test can be carried out without touching the touch button, but an RFID card is required in this case too
- It saves the entry data as .csv files

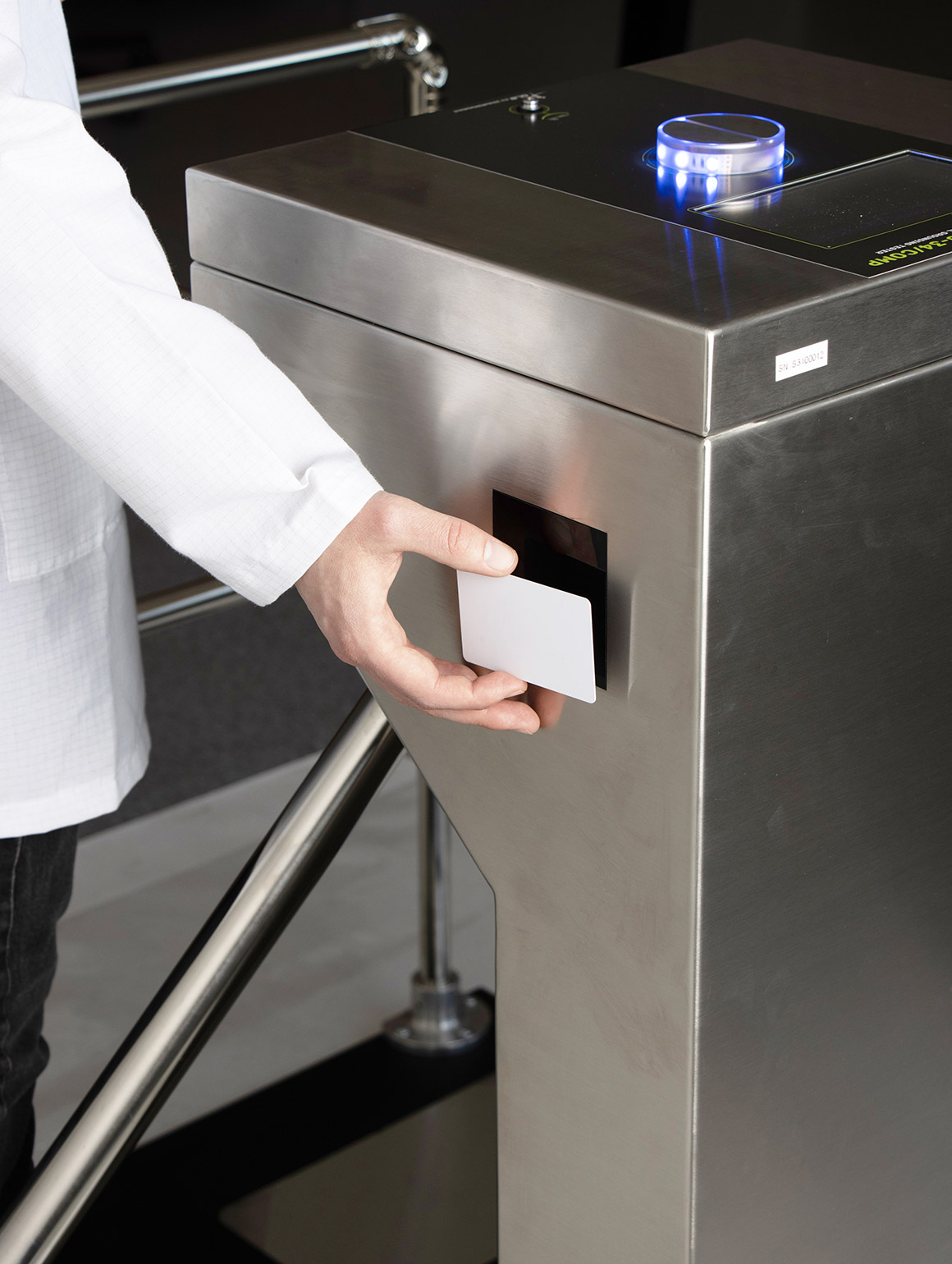

- With an RFID reader that can handle cards that comply with most known RFID standards
- For indoor use only
The AIJGO-34/COMP is a tester for checking personal grounding before entering an ESD protected area (EPA). It may be a good choice if you want to identify persons entering the site. Tester with LIGHT BAR system – such AIJGO products have a steel touch button, the measured results are indicated by LED lights. Type with COMPLEX system – these testers are supplied built-in in an entrance gate with turnstile. COMFORT system product – such AIJGO devices have touch button and RFID reader, an RFID card is required for use, which includes the type of test to be used.
This type can be:
- Footwear system test
- Wrist strap/groundable ESD smock system test
- Footwear system and wrist strap/groundable ESD smock system combined test
- VIP test. The test can start after the card has been scanned.

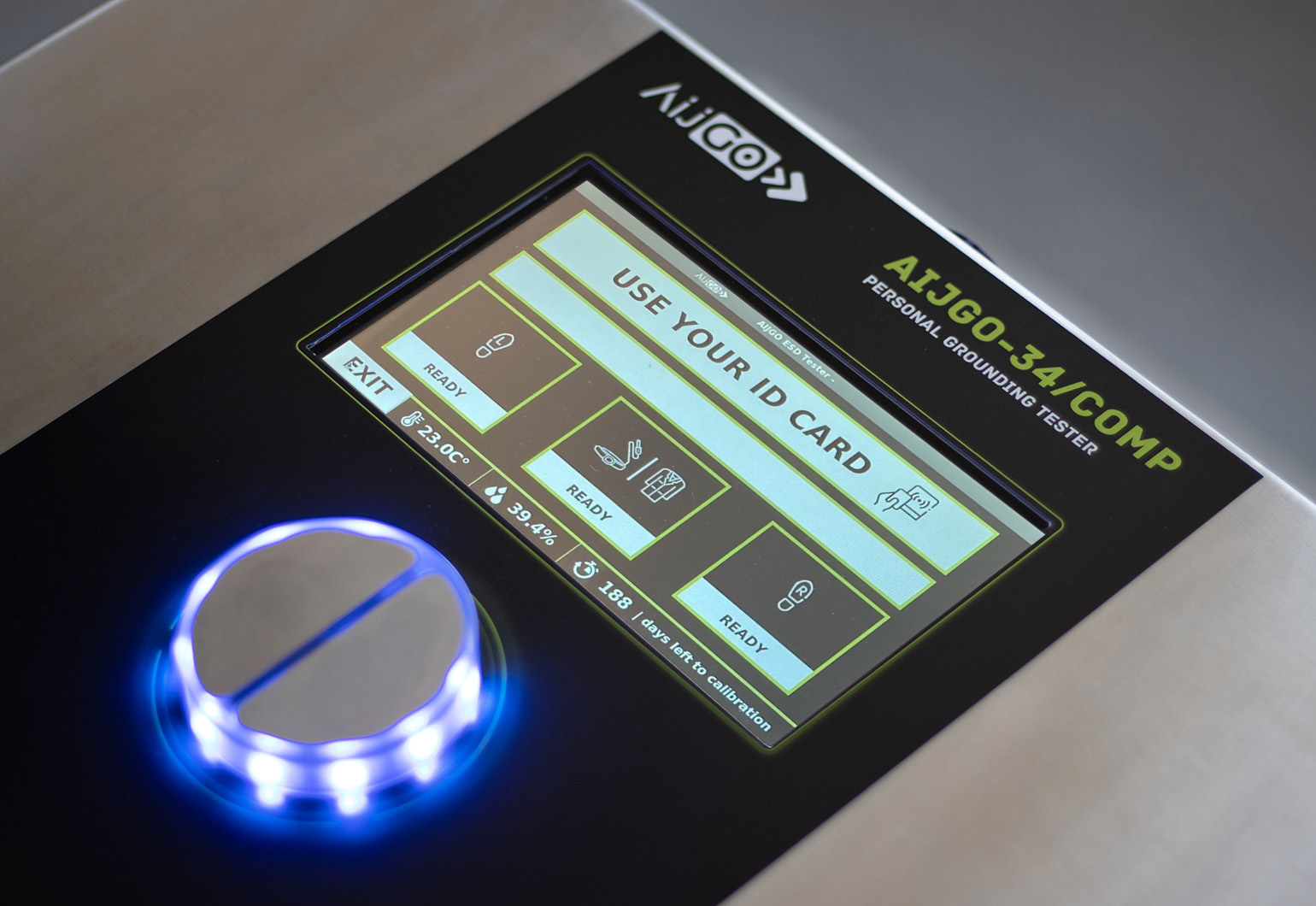

Thanks to the dual foot electrode, the tester simultaneously measures the resistance of the right and left foot relative to the hand. After the test, the measured values are displayed on the built-in LCD display. The measured results are stored on an internal SD card. In the event of a power disconnection, the gate automatically drops down its turnstile to allow free passage.
It is also possible to configure it so that a test can be carried out without touching the touch button, but an RFID card is required in this case too. The product is supplied with an operating software and can operate individually with this. If required, a management software called PieManager can be purchased to configure it over a LAN network and to retrieve the measured results. The system assigns a test method to users and manages their identification data. It saves the entry data as .csv files (compatible with Excel and text editor) and automatically logs daily events. It is recommended and sufficient to purchase only one management software if several testers are purchased and networked. Purchasing and networking multiple management software with multiple testers can lead to communication and system malfunctions. If you have several testers and you do not network them, but use them as separate devices, please buy individual software for each device to configure and collect data over the LAN network.

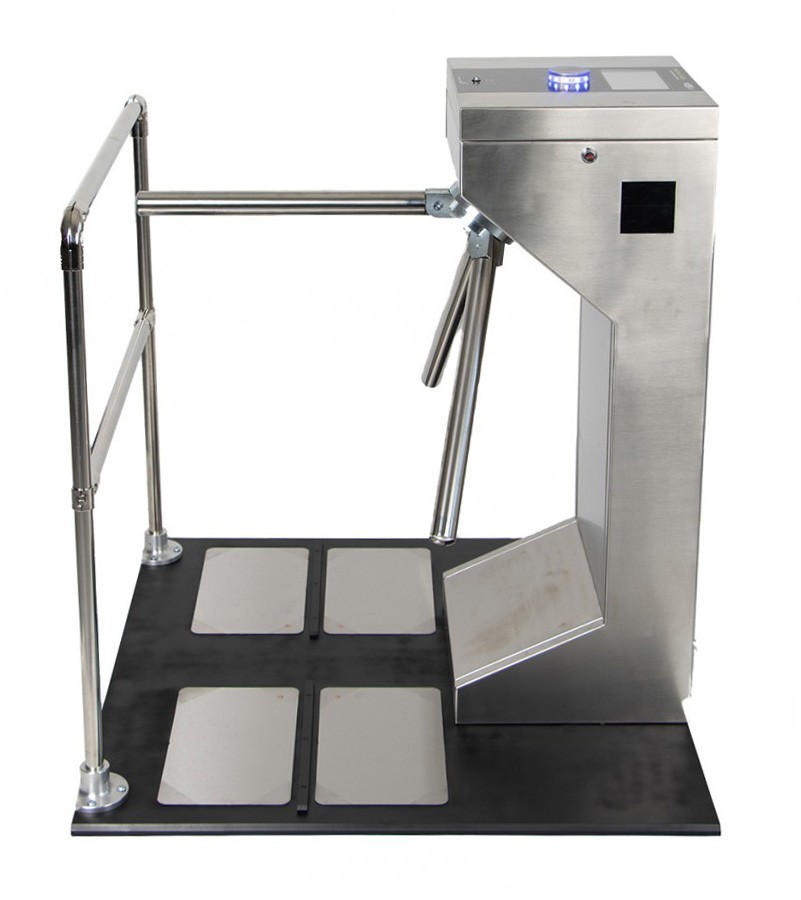

The tester is supplied with manufacturer’s calibration certificate, platform, double dual foot electrode and entrance gate with turnstile.
CE declaration
We declare that the AIJGO-34/COMP product complies with the requirements of IEC 61340-5-1, ANSI/ESD S20.20 and Directive 2001/95/EC (General product safety).
Warning
The device can deliver an effective output power of up to 20 µA or less at a maximum voltage of 100 V for 2-4 seconds at 0,5 second cycles. Therefore, persons with an implanted electronic device (e.g. insulin pump, pacemaker, etc.), known or acute hear rhythm disorders and other disorders of the heart’s impulse generation and conduction, seizure disorders (e.g. epilepsy) should consult their doctor before using this device.
| TECHNICAL INFORMATIONS |
Resistance values indicated as acceptable by the tester
| Default setting when measuring footwear system | 100 KΩ – 100 MΩ You can also set an upper value of 35 MΩ, see the PieManager management software description. |
| Default setting when measuring wrist strap/ groundable ESD smock system |
750 KΩ – 35 MΩ |
| Operating system | Linux Raspbian |
| The tester can be configured via LAN network using RJ45 cable | |
| Test voltage | 100V DC |
| Wrist strap/groundable ESD smock system connection | With a combined 10 mm snap, 4 mm banana plug socket |
| Power supply | 230 V AC |

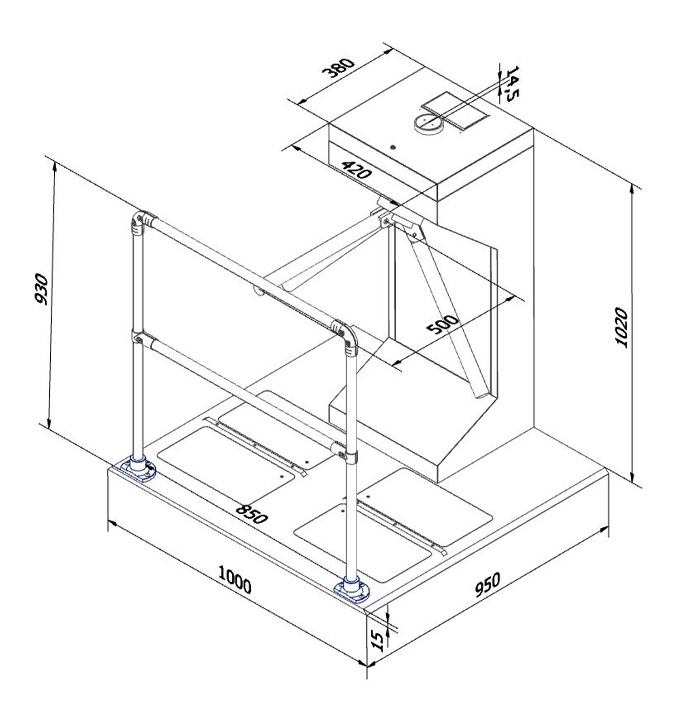

| Sizes | 1000 x 950 x 1049,5 mm with platform and touch button |
Gate properties
- Manual rotation with mechanical assistance (rotary motor)
- Rotation can be blocked electronically
- Automatic turnstile drop down in the event of power disconnection
- Connectable to a fire alarm system, it can be set to drop down the turnstile after a signal from the system, allowing free passage through the gate.
- For indoor use only
| REQUEST FOR QUOTATION |
| ORDER CODE | TYPE | |
|---|---|---|
| AIJGO-34/COMP | Personal grounding tester with platform, double dual foot electrode, and entrance gate with turnstile | {AIJGO-34/COMP} |

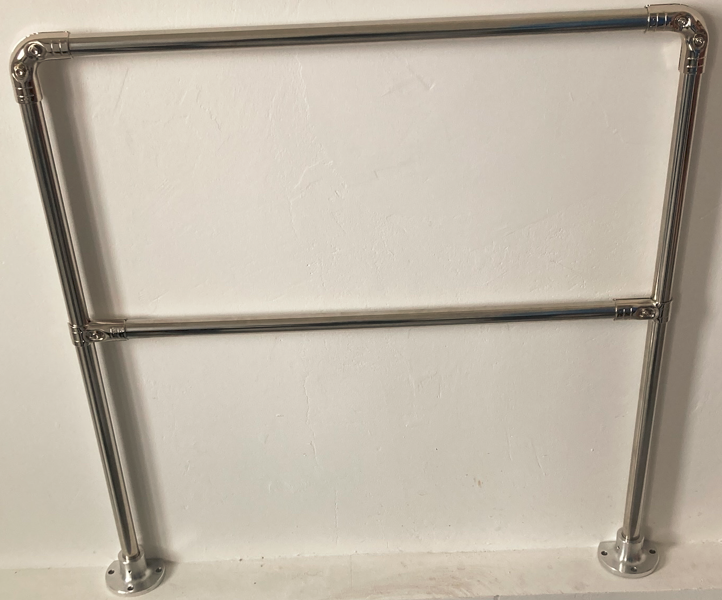

| AIJGO-BAR1 | Barrier for AIJGO-22/COMP or AIJGO-34/COMP tester | {AIJGO-BAR1 } |
| AIJGO-OLED | Optional door opening touch button outwards | {AIJGO-OLED } |
| AIJGO-34/MSW | PieManager management software for AIJGO-34 and AIJGO-34/COMP (if buying more than one tester, it is sufficient and recommended to buy one if they will be networked together) | {AIJGO-34/MSW } |
