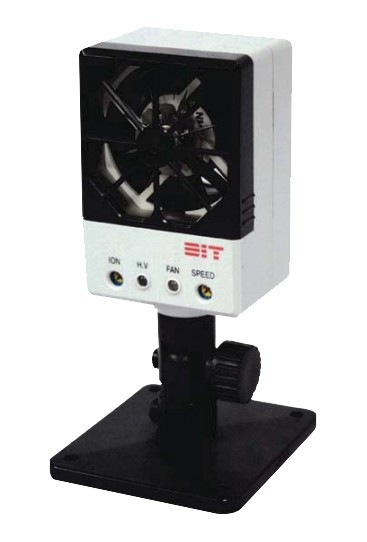

ASF-40A Mini ionizer
| Input voltage | DC 24V ±10V |
| Input current | max. 150 mA |
| Emitter consumption | ±4,0kV |
| Output frequency | 50kHz |
| Ion generating method | Corona discharge |
| Voltage application method | High-Frequency AC |
| Material | Body: ABS / Emitter Pins: Titanium |
| Emitter replacement | Replaceable |
| Ion balance | ≤ ±10V |
| Coverage distance | 100 – 400 mm |
| Ozone generation | < 0,05ppm |
| Ambient temperature | 0oC - +50oC (32 – 122oF) |
| Ambient humidity | 35 ~ 65%RH (No condensation) |
| Air volume | max. 0,27 m3/min |
| Weight | 116,9 gr |

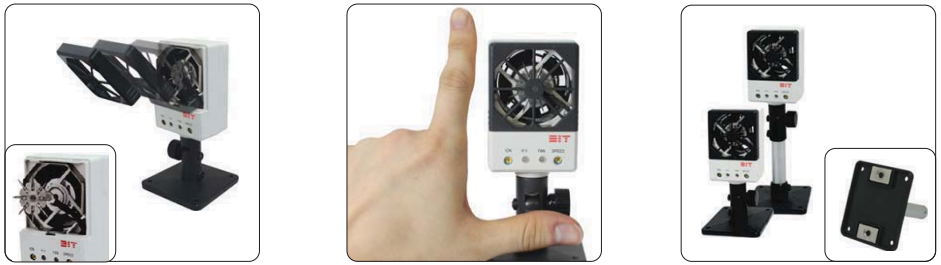

ADVANTAGES
- Easy maintenance & cleaning.
- Subminiature ionizer.
- Installable in cramped space.

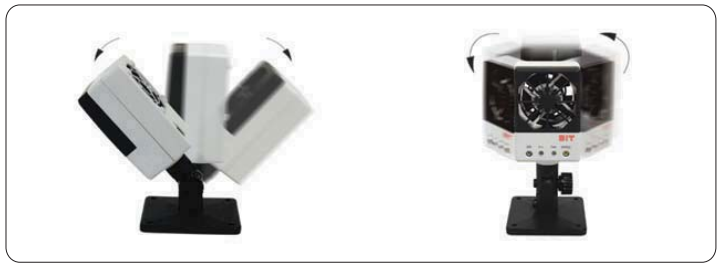

- 360 ° vertical angle rotatable

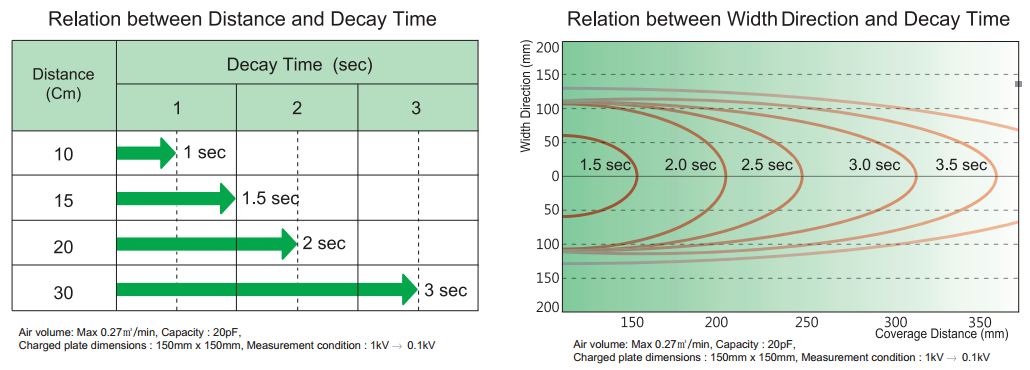

PRODUCT PERFORMANCES

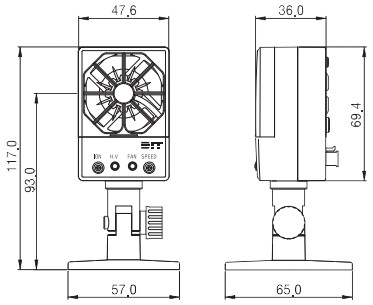

DIMENSIONS
| Order code | Type | Place an order |
|---|---|---|
| ASF-40A | Mini Ionizer | {ASF-40A} |
