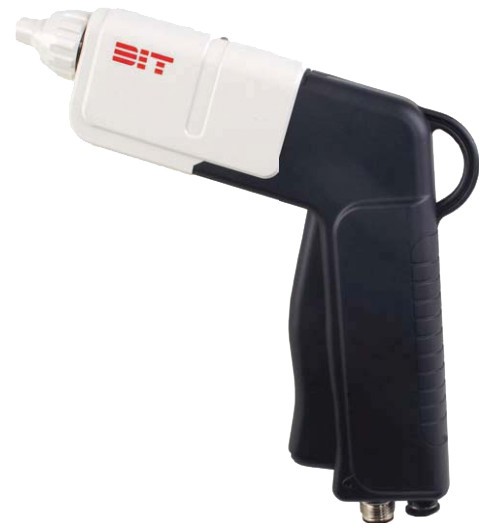

AZM-G1G Ion gun
| Input voltage | DC 24V ±10V |
| Input current(220 VAC) | 200 mA |
| Power consumption | max. 5W |
| Emitter voltage | ±4,0kV |
| Output frequency | 50kHz |
| Ion generation method | Corona discharge |
| Voltage application method | High-Frequency AC |
| Material | Body: ABS / Emitter Pins: Titanium |
| Emitter replacement | Replaceable |
| Ion balance | ≤ ±15V |
| Coverage distance | 200 – 1500 mm |
| Ozone generation | < 0,05ppm |
| Ambient remperature | 0oC - +50oC (32 – 122oF) |
| Ambient humidity | 35 – 85%RH (no condensation) |
| Air Type |
CDA (Clean dry air) or N2 |
| Air Pressure |
0-0,5 MPa |
| Flow / 1 emitter | 128l/cm2 (0,3 MPa) |
| Air tube diameter | 6 mm (Outside) |
ADVANTAGES
- High voltage alarm output

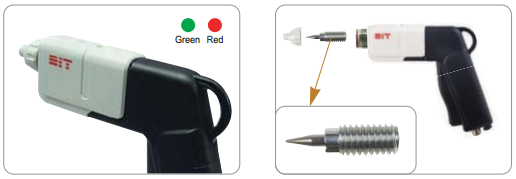

- Easy cleaning and maintenance

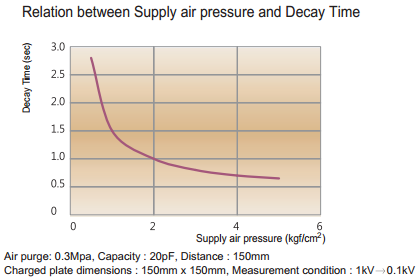

PRODUCT PERFORMANCES

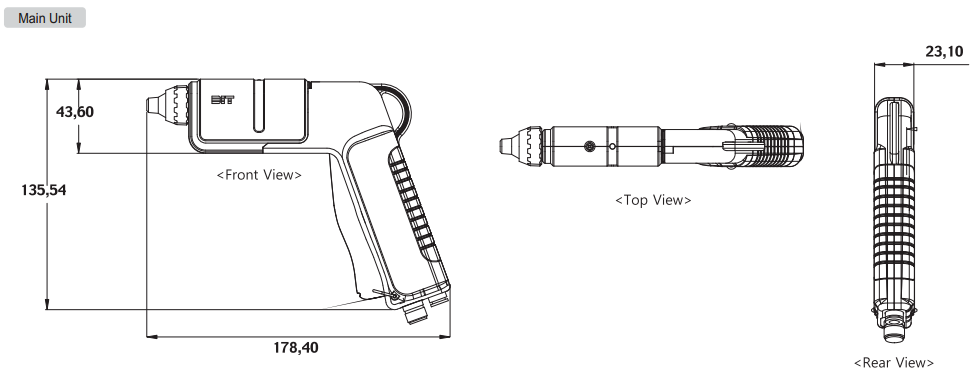

DIMENSIONS
| Order code | Type | Place an order |
|---|---|---|
| AZM-G1G | Ion gun | {AZM-G1G} |
