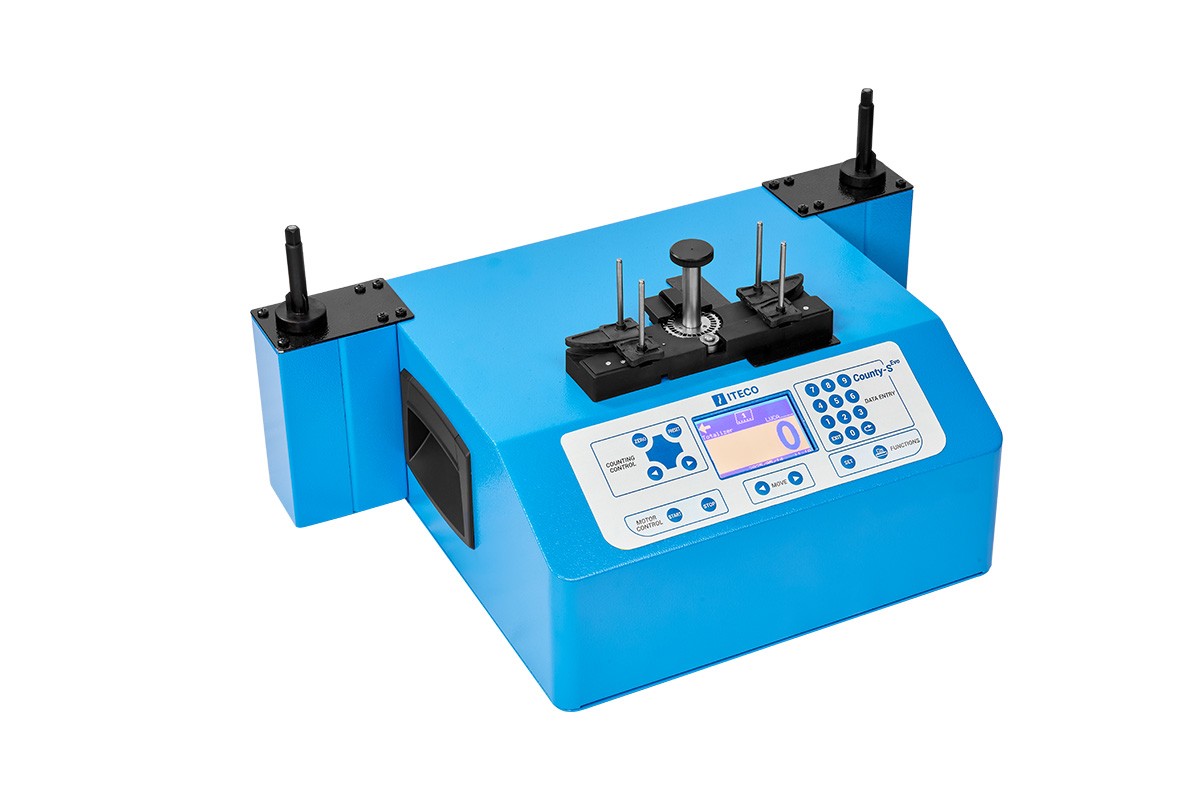

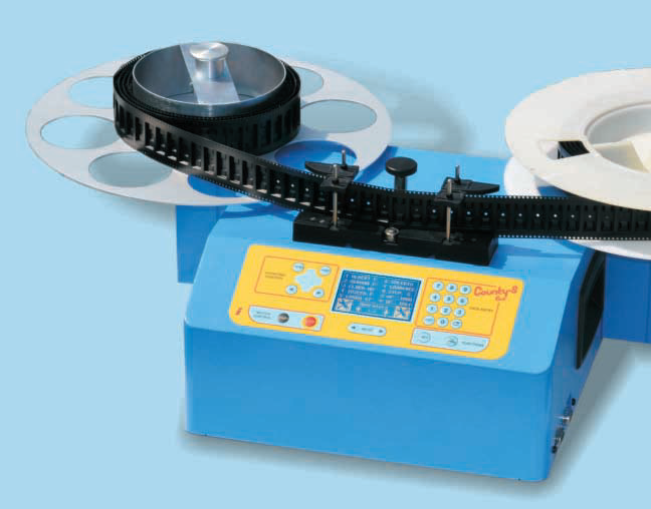

COUNTY-S EVO

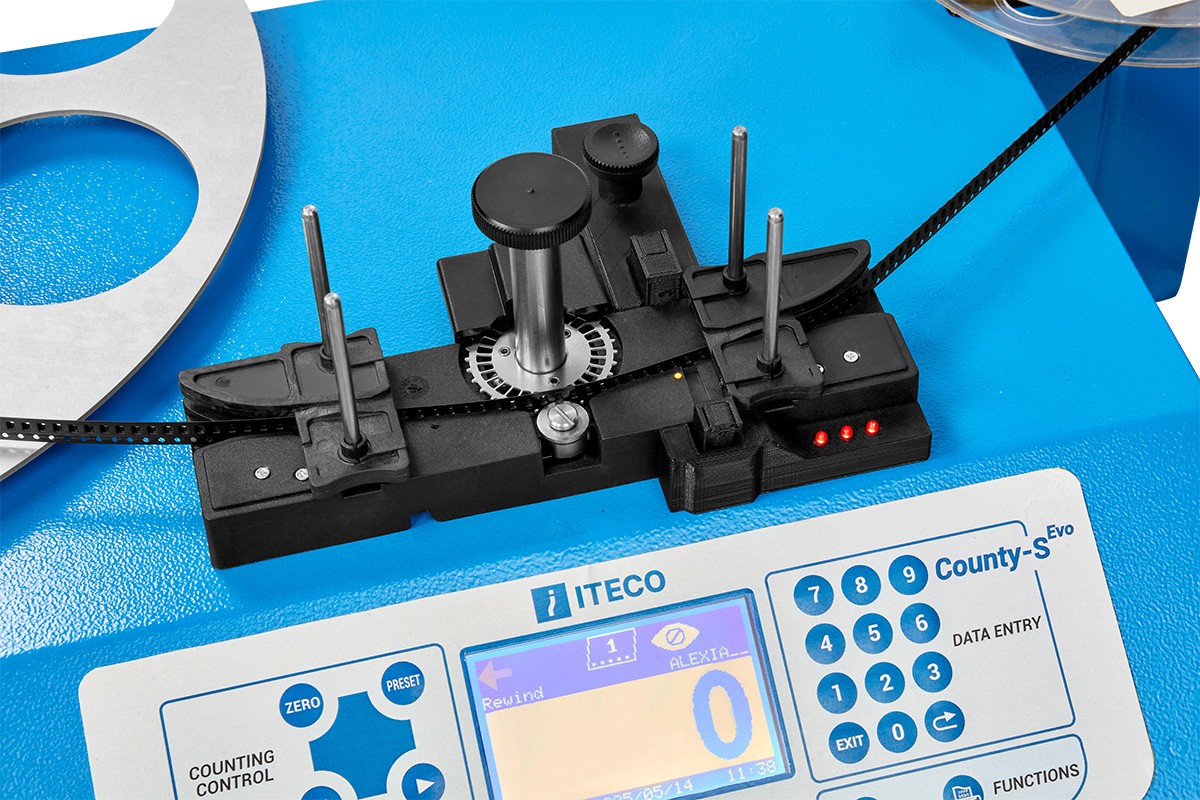

County-s evo is a motorized counting machine for taped SMD component counting. It can operate in two different ways:

  • TOTALIZER: components are counted from a zero reference, tape feed is motorized and the counter automatically stops at the end of tape, to prevent loss of the total
  • PRESET MODE: the desired component number is keyed on the keyboard and the counter automatically stops when it reaches the corresponding component

TECHNICAL FEATURES
Counting max 999999 pcs, 6 digits 22 mm height
Maximum counting speed 220 pcs/sec (1 piece for hole)
Pitch (holes for component) from 1/4 - 1/3 - 1/2 - 1 - 2 -...- 19
Maximum tape height 56 mm
Maximum reel diameter 400 mm (standard configuration)
650 mm (with 8301.150 support)

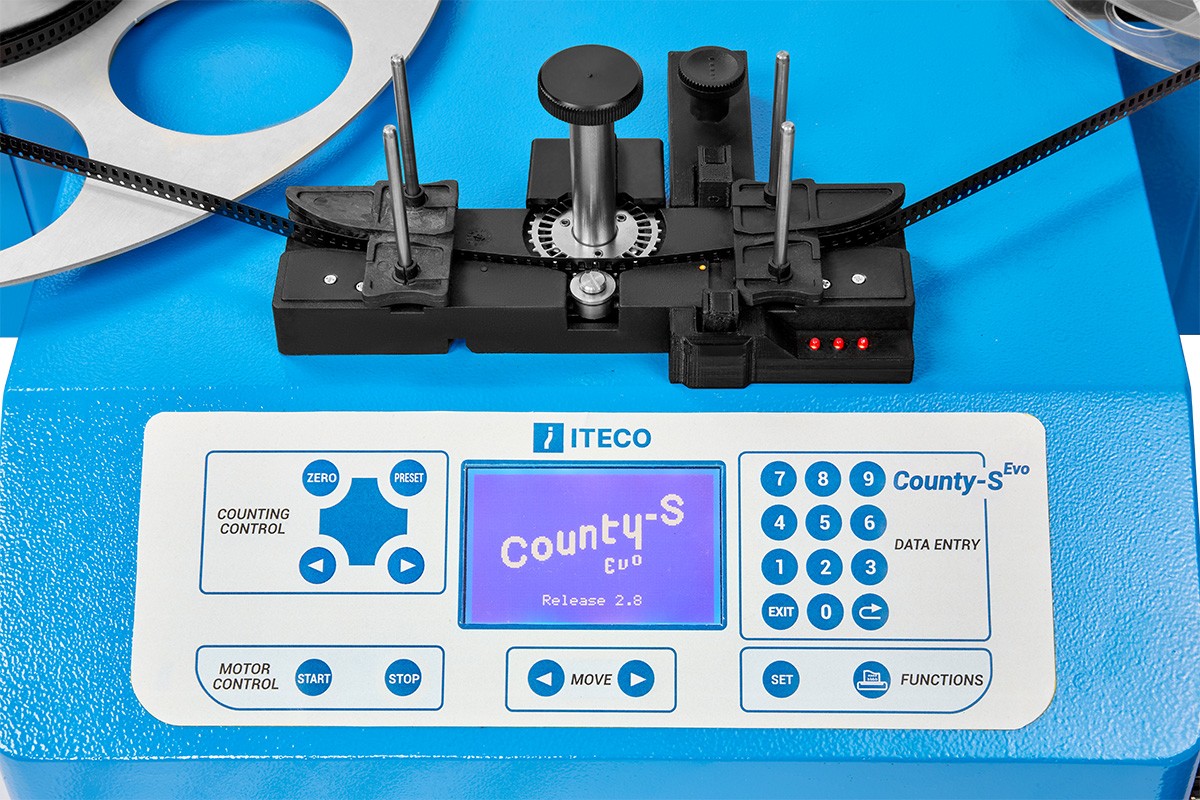

Display blue LCD with led backlight 160x104 pixel
Visible area 74 x 46 mm
Dimensions 525 x 340 x 250(H) mm
Weight 9,5 Kg
Adjustable speed control
Step by step mode (1 component at a time)
Empty pocket check (optional)

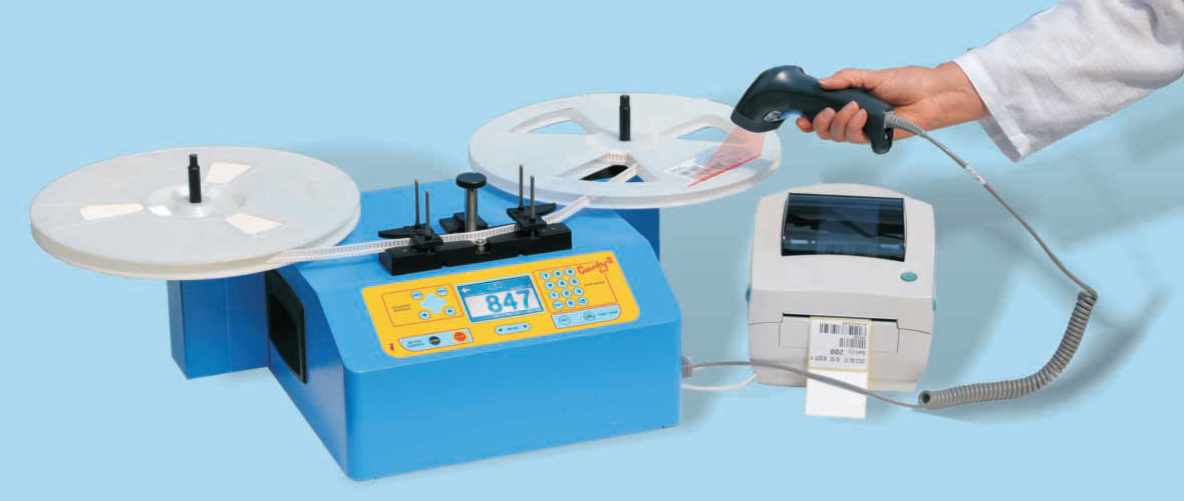

Barcode reader input
Serial connection for label printer or PC
Selection of the operator (10 operators can be memorized with 8 alphanumerical chars everyone)
Internal clock (1 week backup)
Datalogger that stores the last 500 counting data
Memory storage for subtotals
2 side handles for easy transport



Order code Type Place an order
8301.131 COUNTY-S EVO 230 V/50-60 Hz {8301.131}
8301.133 COUNTY-S EVO 230 V/50-60 Hz
with Empty Pocket Check		 {8301.133}
8301.141 County-S EVO 115 V/50-60Hz {8301.141}
8301.143 County-S EVO 115 V/50-60Hz
with Empty Pocket Check		 {8301.143}
8301.350 ISO9000 Traceable® Calibration Report (not included) {8301.350}

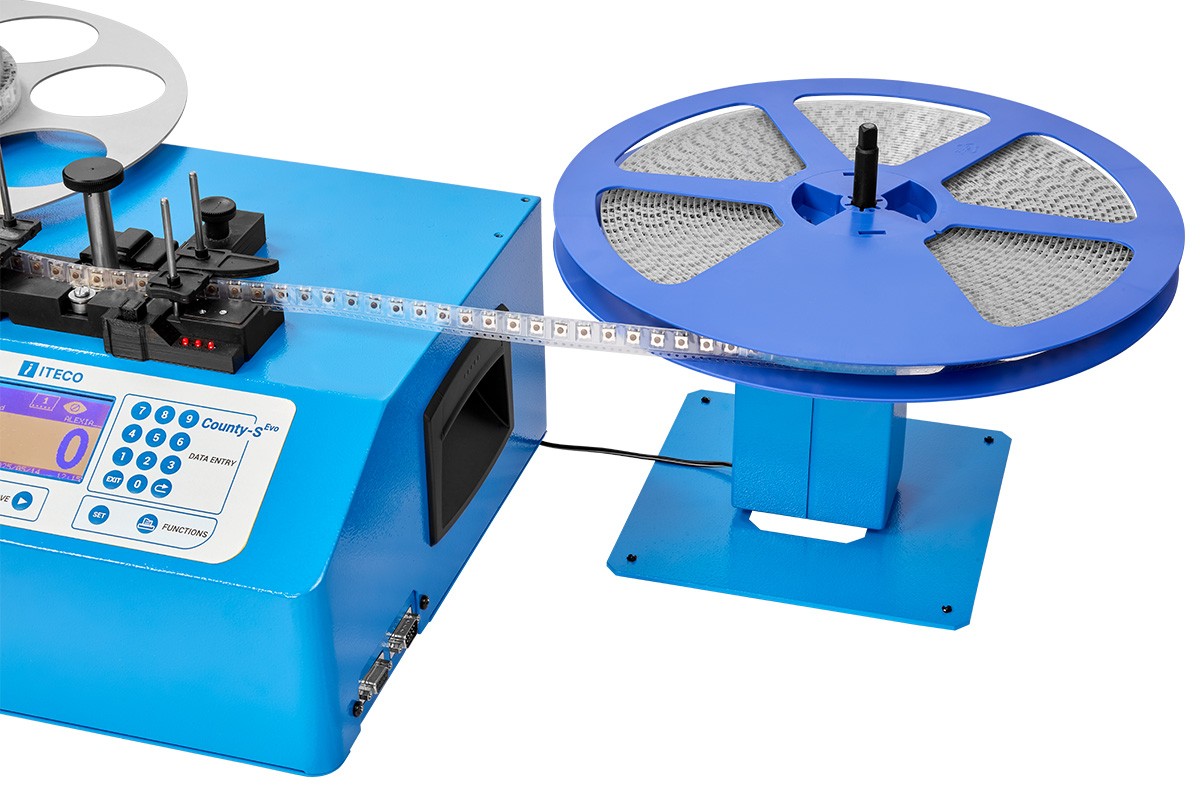

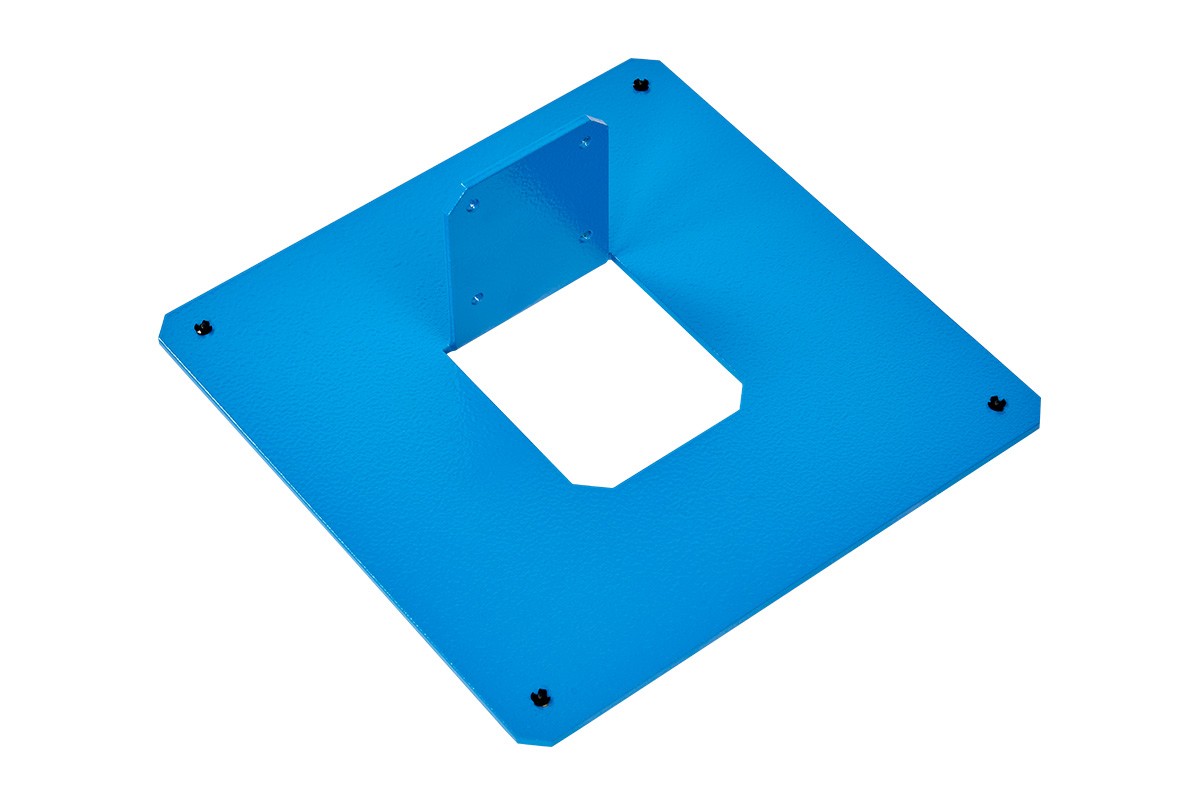

8301.150 Support for reels > 400 mm diameter {8301.150}
8301.021 Empty Reel, aluminium made,
360 mm diameter		 {8301.021}

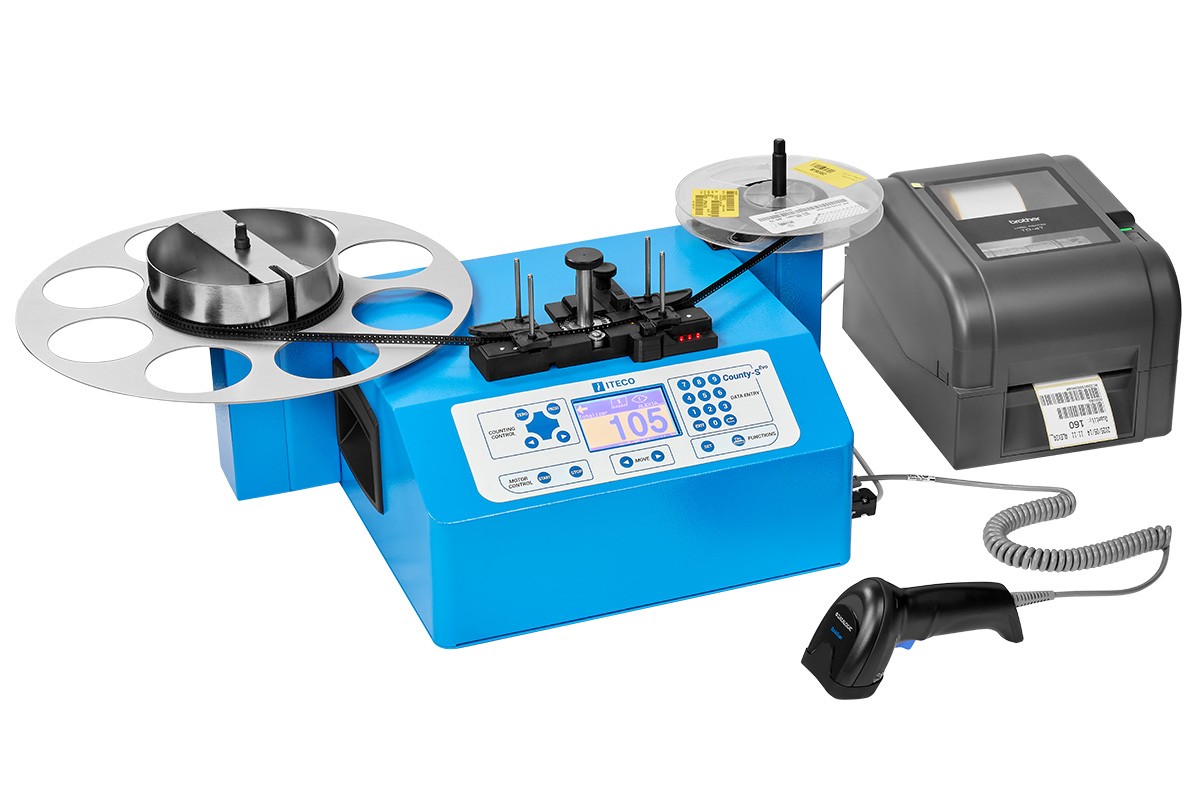

8301.155 Barcode reader with coiled cord {8301.155}
8301.095 Direct thermal label printer {8301.095}
8301.096 57x51mm, 1360 labels/roll {8301.096}
