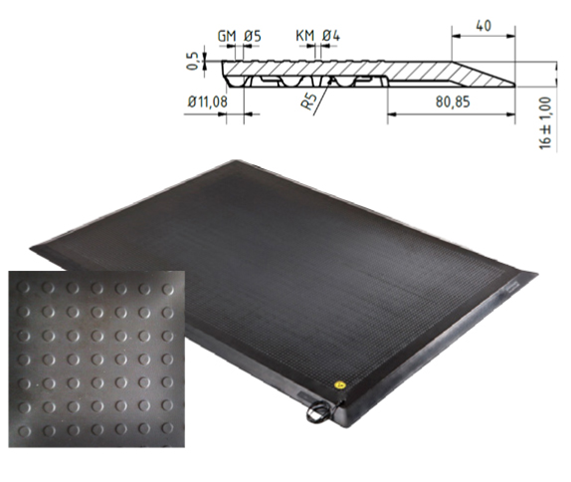

ESD Conductive Anti-Fatigue Mats DRY
| Upper surface | flat structure |
| Bottom side | shock-absorbing bubbles |
| Outer edge | 20° bevelled |
| Lenght/width/thickness | 1350 x 1000 x 16 mm |
| Weight | 19 ± 1 kg |
| Hardness | 55 ± 4 Shore A |
| Temperatur resistance | - 35°C - + 95°C |
| Interlocking designs | Type A - K |
| Material | Rubber SBR-based |
| Color | black |
| Electrical conductivity | electroconductive |
| Vertical resistance | ≤ 105 Ω |

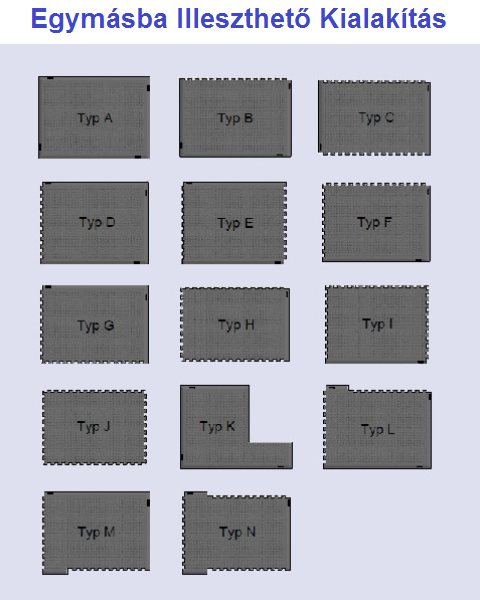

| Order code | Design | Edge profile options | Place an order |
|---|---|---|---|
| DLB-1350A_DRY | Typ A | Uncut | {DLB-1350A_DRY} |
| DLB-1350B_DRY | Typ B | One long edge with interlocking profile | {DLB-1350B_DRY} |
| DLB-1350C_DRY | Typ C | Two long edges with interlocking profile | {DLB-1350C_DRY} |
| DLB-1350D_DRY | Typ D | One short edge with interlocking profile | {DLB-1350D_DRY} |
| DLB-1350E_DRY | Typ E | Two short edges with interlocking profiles | {DLB-1350E_DRY} |
| DLB-1350F_DRY | Typ F | One short & one long edge with interlocking profile | {DLB-1350F_DRY} |
| DLB-1350G_DRY | Typ G | One short & one long edge with interlocking profile and reflectieve coating | {DLB-1350G_DRY} |
| DLB-1350H_DRY | Typ H | Two short & two long edges with interlocking profile | {DLB-1350H_DRY} |
| DLB-1350I_DRY | Typ I | Two short & one long edge with interlocking profile | {DLB-1350I_DRY} |
| DLB-1350J_DRY | Typ J | Interlocking profile all round | {DLB-1350J_DRY} |
| DLB-1350K_DRY | Typ K | Customised solutions (E.g. interlocking flooring with cut-out ) | {DLB-1350K_DRY} |
| DLB-1350L_DRY | Typ L | Ine short & one long edge with interlocking profile | {DLB-1350L_DRY} |
| DLB-1350M_DRY | Typ M | One short & one long edge with interlocking profile | {DLB-1350M_DRY} |
| DLB-1350N_DRY | Typ N | Two short & one long edge with interlocking profile |
{DLB-1350N_DRY} |
