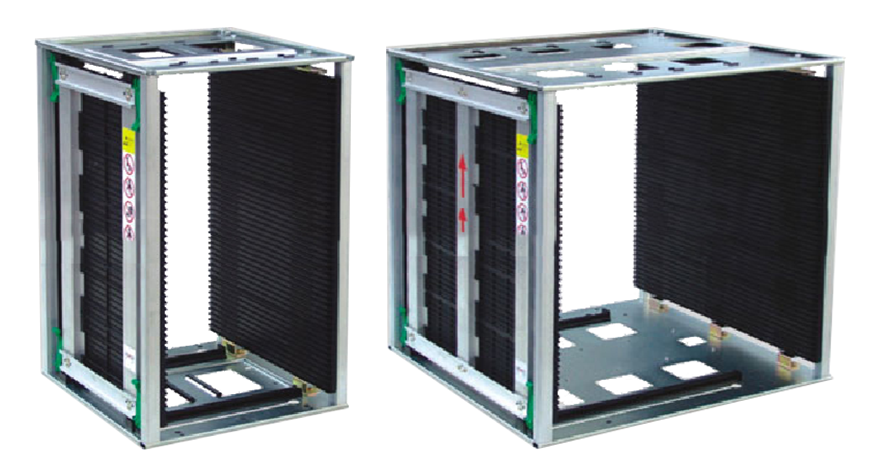

ESD SMT Magazine Rack
| Description: | the top and bottom boards are made of metal, gear track with pinion allows easy operation |
| Max. storage PCB: | 50 pcs |
| Side guide slot: | depth 3,5 mm, width 5 mm, pitch 10 mm |
| Surface Resistance: | 104 - 106 Ohm |
| DLB-803 - PCB Size: | 350 x (50 - 250) mm |
| DLB-806 - PCB Size: | 460 x (50 - 330) mm |
| DLB-808 - PCB Size: | 535 x (50 - 390) mm |
| DLB-809 - PCB Size: | 535 x (50 - 460) mm |
| Order code | Size | Max. temperature ºC | Place an order |
|---|---|---|---|
| DLB-80380 | 355 x 320 x 563 mm | 80 | {DLB-80380} |
| DLB-803125 | 355 x 320 x 563 mm | 125 | {DLB-803125} |
| DLB-803200 | 355 x 320 x 563 mm | 200 | {DLB-803200} |
| DLB-80680 | 460 x 400 x 563 mm | 80 | {DLB-80680} |
| DLB-806125 | 460 x 400 x 563 mm | 125 | {DLB-806125} |
| DLB-806200 | 460 x 400 x 563 mm | 200 | {DLB-806200} |
| DLB-80880 | 535 x 460 x 570 mm | 80 | {DLB-80880} |
| DLB-808125 | 535 x 460 x 570 mm | 125 | {DLB-808125} |
| DLB-808200 | 535 x 460 x 570 mm | 200 | {DLB-808200} |
| DLB-80980 | 535 x 530 x 570 mm | 80 | {DLB-80980} |
| DLB-809125 | 535 x 530 x 570 mm | 125 | {DLB-809125} |
| DLB-809200 | 535 x 530 x 570 mm | 200 | {DLB-809200} |
