FL1 - ESD Fabric

Complies with IEC/TS 61340-4-9:2016 and  ANSI/ESD STM2.1:2018, Developed for industrial washing

Available colours:

Black (BK), Navy blue (NB), Dark gray (DG), Orange (O), Yellow (Y)


FL1 - ESD Fabric

FEATURES
  • Static dissipative Knitted fabric (with carbon yarn)
  • Composition: 96% Polyester 4% Conductive fiber
  • Fabric Weight: 280 g/m2
  • Finish: Fleece
  • Resistance from point to point (Rp): 109 - 1011 Ohm
  • Charging time: < 2 seconds
  • Electrical properties maintained after more then 40 industrial washings according to IEC/TS 61340-4-9:2016 and ANSI/ESD STM2.1-2018
  • Complies with IEC/TS 61340-4-9:2016 and ANSI/ESD STM2.1:2018
  • Developed for industrial washing



AVAILABLE COLOURS

Black (BK), Navy blue (NB), Dark gray (DG), Orange (O), Yellow (Y)

Szinek

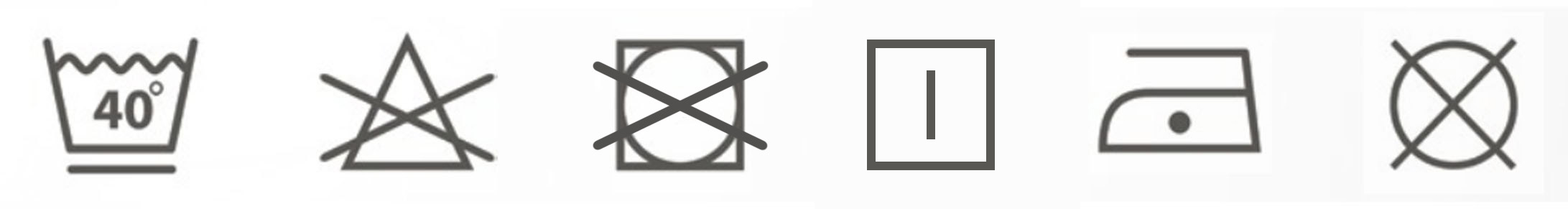

WASHING INSTRUCTIONS
  • In order to preserve the long life of ESD clothings, please use industrial laundries who can provide controlled, documented washing procedures and environment
  • Wash in cold or not warmer than 40 oC (104 oF) lukewarm water with neutral liquid detergent
  • Do not use detergents and / or rinse aids that contain bleach and / or chlorine
  • Bleachers are forbidden
  • Do not use rinse aids or detergents with a high alkali or high acid content
  • Do not dry clean
  • Dry in the open air and / or lay flat. Do not tumble dry
  • Does not require ironing, but if absolutely necessary, iron at a maximum temperature of 110 oC (230 oF) without steaming
  • Wash all items inside out
  • Using deodorant can damage the color of the product
  • When drying clothes outdoors, do not expose them to direct sunlight
  • Tighten the zippers before each wash

ICON

WARRANTY
  • The warranty is strictly valid under controlled and documented industrial laundry conditions, concern the fabric washing cycle as specified in the technical data’s.
  • The warranty is NOT valid if the washing process is made in home environment!
  • The warranty covers ESD parameters and possible sewing errors according to IEC 61340-4-9:2016 and ANSI/ESD STM2.1:2018 standard issued only!
  • The warranty does not cover the size and shrinkage differences within the tolerances given at the size charts!
  • Our clothing products are provided with the "Operating instructions with symbols” according to the MSZ EN ISO 3758:2012 standard.
  • If the product shows improper tampering (e.g. tread extension or tearing), the complaint can be rejected.
