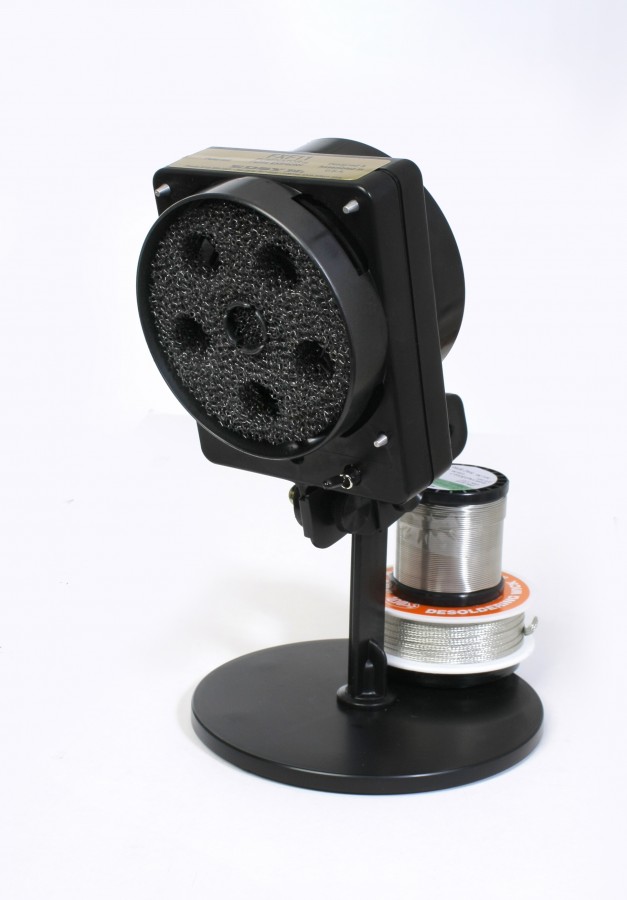

FUMINATOR FXF11-1 / FXF12-1 Fume extractor
- Powerful bench top fume extraction system provides ultra -quiet and compact two stage filtration
- Proprietary FUMINATOR® rotating filter system draws fume away from operator and provides filtration 8 times better than a stationary filter
- Dual adjustment arm for more targeted fume removal
- Quick and easy filter replacement
- Internal safety grills
- ESD safe
- 90 day warranty (does not include filters)
| Contents | |
|---|---|
| FXF10 | FUMINATOR® bench top fume extractor fan |
| SH237 | 2-in-1 modular wet and dry tip cleaner |
| SR542 | Stand with solder peg holder |
| Replacement Filters | |
|---|---|
| XF01 | Filter set contains one each rotating front filter and charcoal impregnated stationary rear filter |
| XF02 | Primary rotating filter (set of 5) |
| XF03 | Charcoal impregnated stationary rear filter (set of 5) |
| Specifications | |
|---|---|
| Power Requirements | 12VDC |
| Weight | FXF11-1 - 0.49 kg |
| FXF12-1 - 0.68 kg | |
| Dimensions | 102 mm x 229 mm x 102 mm |
| Max Airflow | 83.3 m3/h |
| Noise Level | 53 db |
| Product code | Name | Offer request |
|---|---|---|
| FXF11-1 | FUMINATOR® bench top fume extractor fan with stand with solder peg holder | {FXF11-1} |
| FXF12-1 | FUMINATOR® bench top fume extractor fan with stand with solder peg holder and 2-in-1 modular wet and dry tip cleaner | {FXF12-1} |
