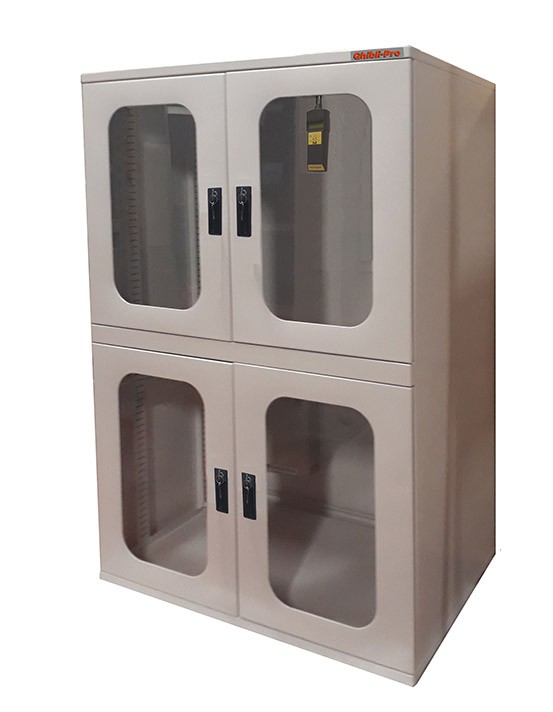

GHIBLI-PRO/1400L Dry cabinet
The GHIBLI PRO / 1400L dry cabinets are ideal to provide low humidity
and moisture-proof storage for MSD (Moisture Sensitve Devices)
like IC packages, for example. They are complying with IPC/JEDEC
J-STD-033, ESDsafe, easy to use (no need to set any panel button at all)
TECHNICAL FEATURES
| Humidity Range | <5% guaranteed (typical 2%) |
| Outside Dimensions | 1160 x 767 x (H) 1720mm (support feet excluded) |
| Inner Dimensions | 1100 x 740 x 1700 mm |
| Doors | Hermeic closure with key, handle and anistaic glass |
| Door opening | 520 x 755 mm |
| Weight | 178 Kg, 198 Kg with baking |
| Shelves | 5 included, height adjustable dim. 1094 x 606 x 18mm |
| Structure | 1,2 mm thick carbon steel with adjustable support feet |
| Grounding Wire | 1 cable (2mt. lenght) |
| Colour | Gray - Ral 7035 - ESD paint |
| Power without baking | Max 500W, Average 80W |
| Power with baking | Max 1500W, Average 580W |
| Order code | Type | Place an order |
|---|---|---|
| 8106814 | GHIBLI-PRO/1400L Dry cabinet | {8106814 } |
| 8106834 | GHIBLI-PRO/1400L Dry cabinet with baking | {8106834 } |
