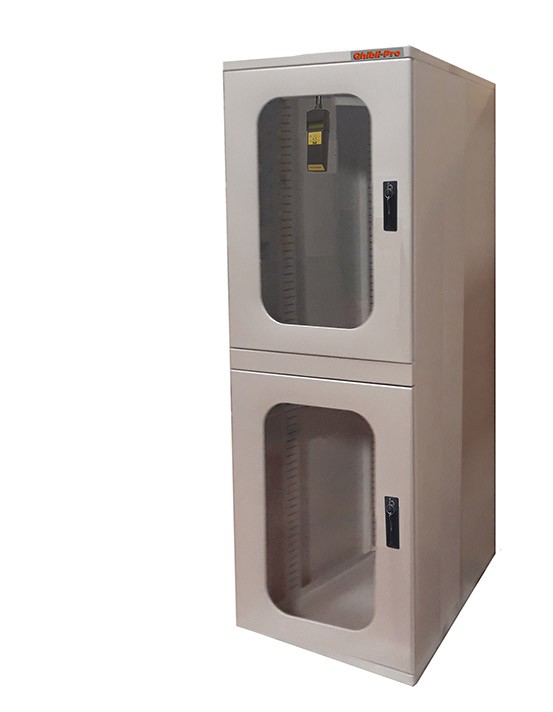

GHIBLI-PRO/700L Dry cabinet
Moisture Sensitive Devices (MSDs), must be managed correctly because "a single mistake" on a tray or reel of MSD causes "negative impact on the entire production batch". Electronic components (like QFP, BGA or SOIC for example), LEDs and Printed Circuit Boards, when extracted from their original protective package, absorb humidity from the environment and during the soldering process the trapped moisture can vaporize and exert internal package stress. GHIBLI-PRO dry cabinets provides a "safe place" to temporary stock the MSDs removed from their original Dry Pack before soldering process. In fact the J-STD-033 tells that under 5% RH the Floor Life is congealed.
ADVANTAGES ABOUT GHIBLI
Easy use: It’s plug and play, just connect it to the main supply without any settings and it will be stable at less than 5%RH (5%RH is guaranteed but the cabinets easily reach 2%). The dehumidifier units are always active and not controlled by any sensor. This avoid dangerous problems due to malfunction or drift of hygrometers.
Easy calibration: Inside the cabinet there is an instrument for measuring environmental parameters: a DryLogger 9265.302 for the GHIBLI PRO line, visible through the glass of the upper door, or a Ghibli ADV Sensor module 8104.853 for the GHIBLI ADVANCED line, magnetically anchored to the internal walls. Both instruments can be sent for calibration at any time without problems
Modular design: The dehumidifier modules are easy extractable with only a screwdriver. This allow easy reparation and grant the long life of the cabinet, over 20 years, as long as the metal structure last. This is our green policy. Smart magnetic handles with key lock at every door. The front of the cabinet is flat.
2 years warranty
Technical specifications
| Humidity Range | <5% RH guaranteed , typical 2% RH |
| Colour | Anthracite |
| Power supply | 230Vac |
| Structure | 1,2 mm thick carbon steel with antistatic paint |
| Door | magnetic handles , magnetic sealers |
| Wheel (optional) | 4 antistatic 3” wheels, two of them with brakes |
| Grounding wire | 2mt |
| ESD paint | 103 – 109Ω |
| Maximum load per shelf | 100 kg |
| Maximum total load | 300 kg |
| Capacity | 700L |
| Ext. Dimensions (mm) |
580x767x1755 |
| Shelf Size (mm) |
510x606x18 |
| Average power without baking | 80W |
| Maximum power without baking (only PRO BK) | 330W |
| Average power with baking | 500W |
| Maximum power with baking (only PRO BK) |
1000W |
| Weight (PRO) | 118kg |
| Weight (PRO BK) | 128kg |
| Order code | Type | Place an order |
|---|---|---|
| 8106.807 | Ghibli PRO 700 Dry cabinet | {8106.807} |
| 8106.837 | Ghibli PRO 700 BK Dry cabinet with baking | {8106.837} |
