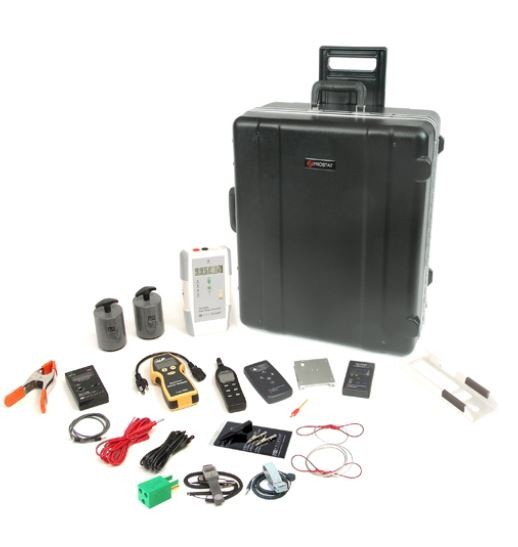

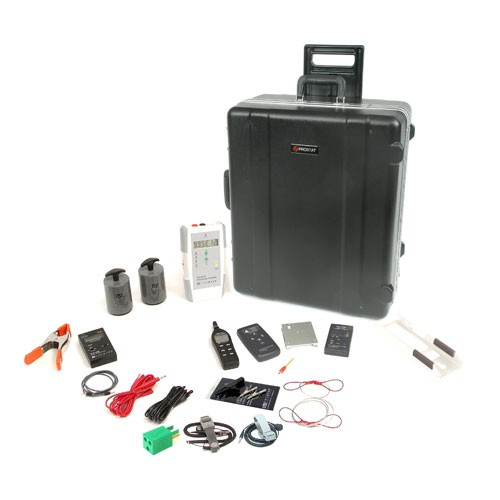

PROSTAT PAK-253 ESD System Control Kit
Designed to meet ANSI/ESD S20.20 Program Standards
- Perform ESD Audit Measurements per TR53

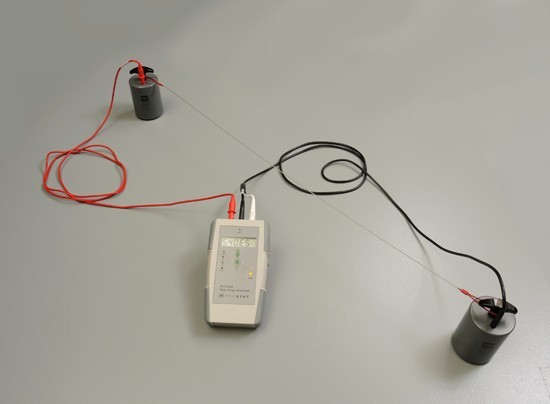

- Measures resistance point-to-point(Rtt) or surface to ground (Rtg) of worksurfaces, flooring systems, garments, packaging
- Resistance measurements in accordance with ESD Association ESD TR53, ANSI/ESD S4.1, ANSI/ESD S7.1 and ANSI/ESD STM97.1
- Verify ground voltage and impedance
- Measure static fields

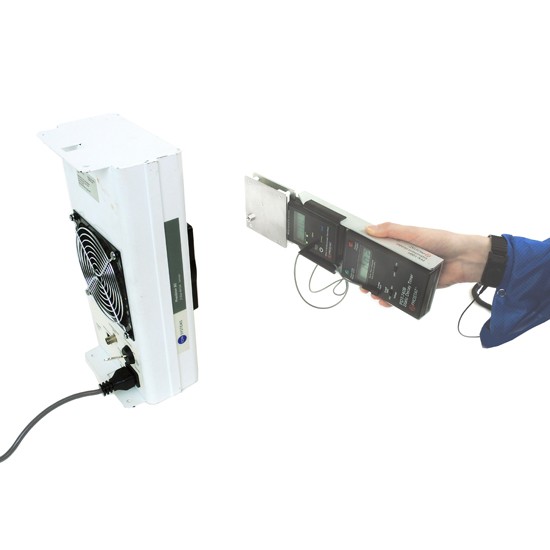

- Analyze and balance ionizers
- Measure body voltages
- Measure charge generation and decay time
- Includes temperature and relative humidity gaguge
What's Included

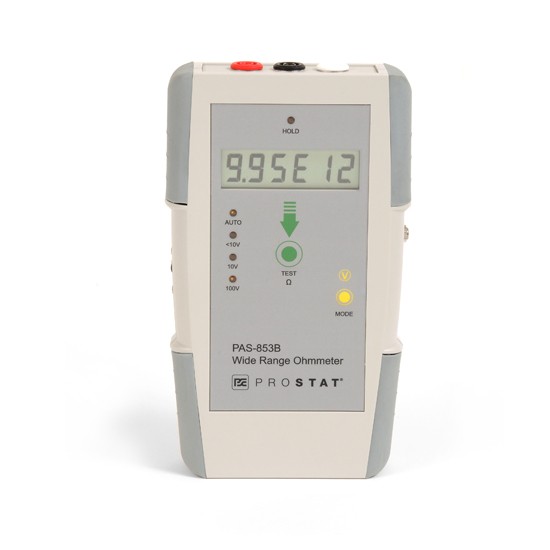

- PAS-853B Wide Range Ohmmeter
- PFK-100 Electrostatic Field Meter Set
- PDT-740B Static Decay Timer
- PFK-100H Instrument Holder
- PHT-771 Digital Psychrometer
- PGT-61-164 SureTest® Circuit Analyzer
- PRS-801-W 5 lbs Conductive Rubber Electrodes (2 each)
- PRS-800CS Cable Spacers Set - 36" & 10"
- PWS-610M Fabric Band Wrist Straps
- PWS-620 Metal Band Wrist Straps
- Q007B Common Point Ground Connector
- PSC-010 Pony 3202 - 2 inch Spring Clamp
- PRS-801-WW Electrode Cleaning Wipes (5)
- PK-2/300 SKB Carrying Case with Handle and Wheels
- PAB-024 Accessories Case
- User Manual
- Certificates of Calibration with data, treceable to NIST
| Order code | Type | Place an order |
|---|---|---|
| PAK-253 | ESD System Control Kit | {PAK-253} |
