PROSTAT PBT-531 Shielded Bag Test Kit
Test shielded bags per ANSI/ESD STM11.31 and IEC 61340-4-8
- Test Shielded Bag per ANSI/ESD STM11.31
- Meets IEC 61340-4-8
- Evaluate the performance of electrostatic discharge shielded bags
- Works with moisture barrier bags and corrugated products
- Includes portable USB PicoScope and software
- Includes Verification Setup File and Bag Test File
- Battery operated makes it fully portable
- Computer, Laptop or Tablet not included

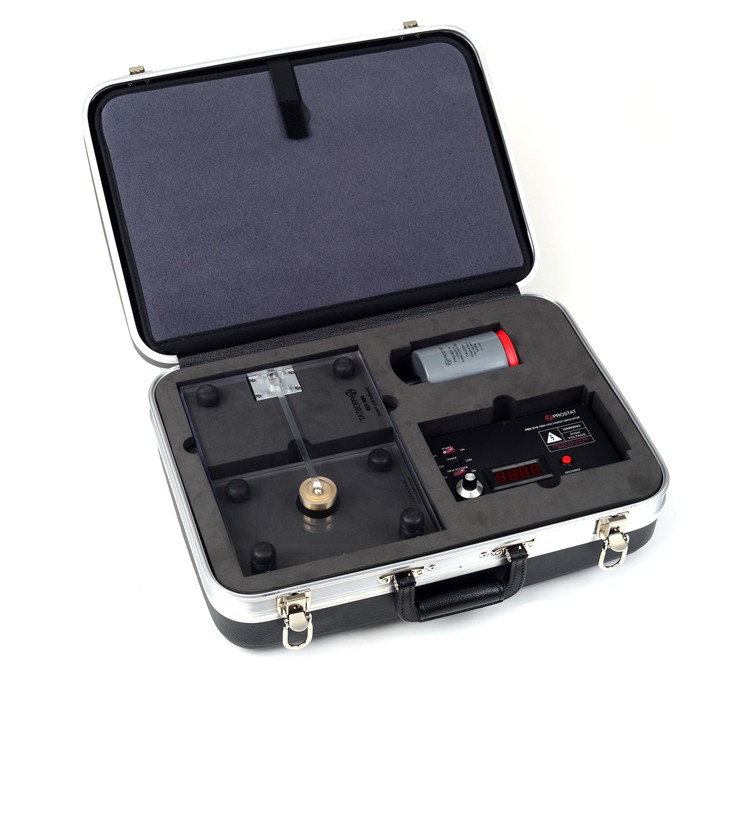

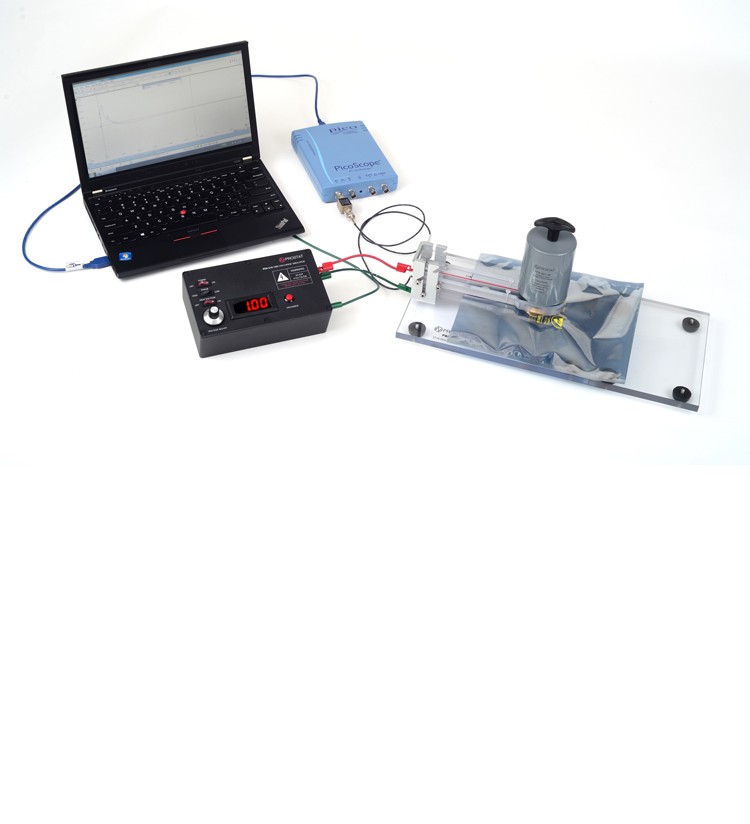

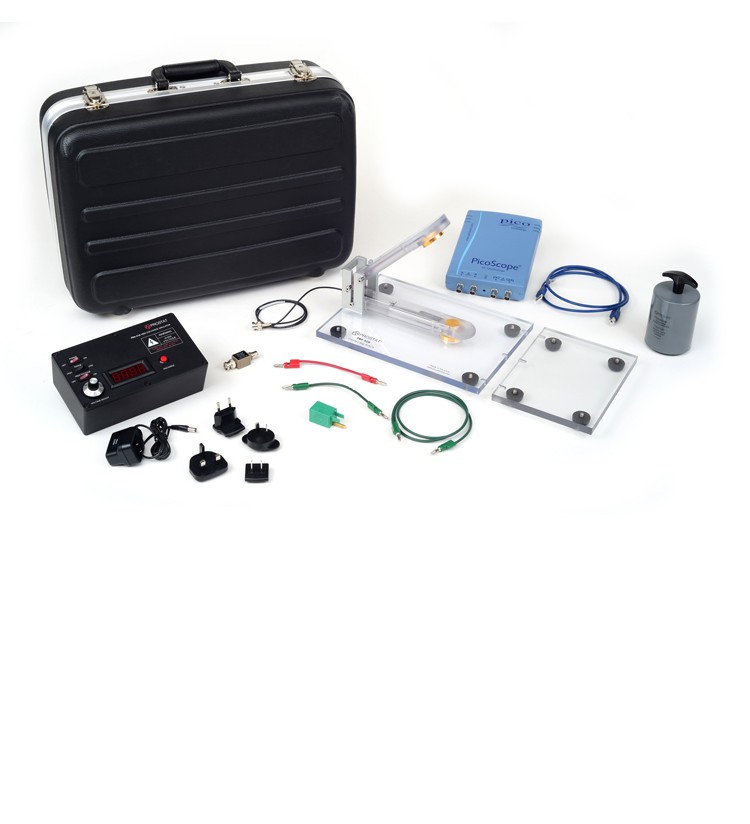

The PBT-531 is a complete system kit designed to evaluate the performance of electrostatic discharge shielded bags and other packaging materials. The portable shielded bag test system is capable of calculating the energy of the discharge pulse inside the shielded bag in accordance with ANSI/ESD STM11.31 and IEC 61340-4-8.
Note: Computer, Laptop or Tablet not included.
Technical Specifications
| PDS-510 HBM DISCHARGE SIMULATOR | |
| DISCHARGE OUTPUT |
Adjustable up to 4kV
|
| POWER SUPPLY OUTPUT | Adjustable up to 4kV |
| POWER SUPPLY ACCURACY | ±2% |
| DISCHARGE WAVEFORM PER ANSI/ESD STM11.31 | Rise time @ 0Ω: <10 nsec @ 500Ω: <20 nsec Fall time @ 0Ω: 150±15 nsec @ 500Ω: 200±20 nsec Ringing: <15% |
| POWER |
Batteries: 4 each AA 2600 mAh low self-discharge, Rechargeable, Nickel-Metal Hydride Battery Power Supply: From 90VAC to 264VAC, 47Hz to 63Hz. UL and TUV 60950-1 approved. |
| BATTERY LIFE | > 100 hours (with average of 50 discharges in 8 hours) |
| DIMENSIONS |
7.5”L x 4.5”W x 2.5”H (19.05cm x 11.43cm x 6.35cm) |
| POWER | Two 9-VDC alkaline batteries. Nominal battery life 25 hours in Automatic Greater than 35 hours in Automatic Manual |
| WEIGHT | 2.0 lbs (907g) |

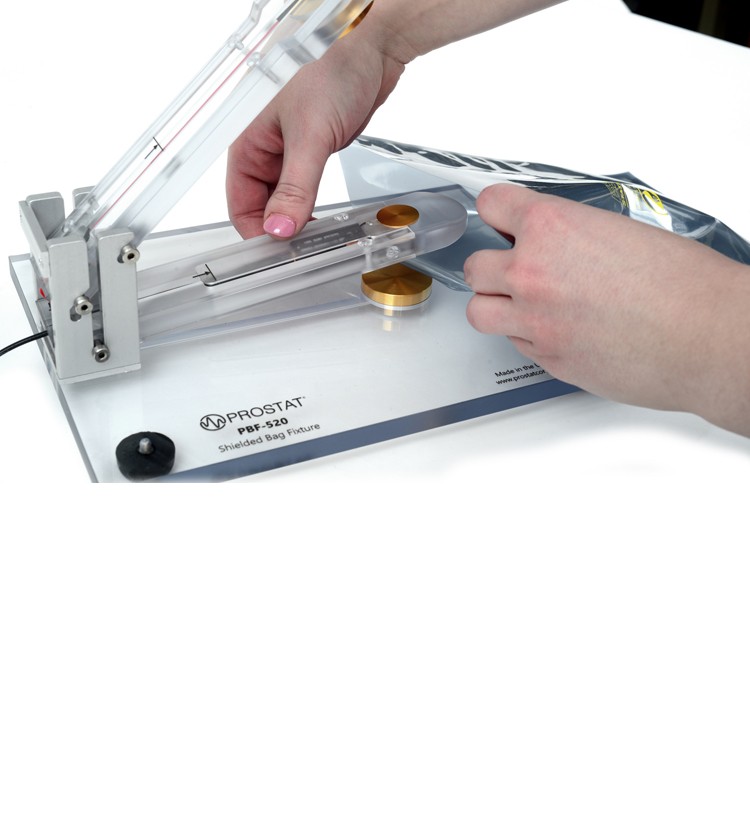

| PBF-520 SHIELDED BAG TEST FIXTURE | |
| BASE MATERIAL | Flame Retardant Polycarbonate |
| SURFACE RESISTIVITY | >1x1013Ω |
| DISCHARGE AND GROUND ELECTRODES | 1.5” (3.8 cm) brass, gold plated |
| CAPACITIVE PROBE | 0.830” (2.1 cm) brass, gold plated |
| CAPACITANCE | Nominal 8pF |
| HIGH VOLTAGE RESISTOR | 500 Ohms, 1% tolerance |
| SUPPORT AREA SURROUNDING THE GROUND ELECTRODE |
8x10” (20x25cm) - without Base Extension attached 8x15” (20x35cm) - with Base Extension attached |
| DIMENSIONS |
11”L x 8”W x 4”H - without Base Extension 6”L x 8”W x 1”H - Base Extension |
| WEIGHT |
3.0 lbs (48 oz) - without Base Extension 1.0 lbs (16 oz) - Base Extension |
| TEKTRONIX® CT1 CURRENT PROBE - INCLUDES ATTENUATOR | |
| BANDWIDTH |
1 GHz
|
| SENSITIVITY (INTO 50O) | 5mV/mA |
| ACCURACY | ±3% |
| CABLE LENGTH | 40” (1 meter) |
| PICOSCOPE® OSCILLOSCOPE | |
| BANDWIDTH | 200 MHz |
| SAMPLING RATE | Up to 1 GS per seconds |
| PC CONNECTIVITY | USB 2.0 (USB 3.0 compatible). USB cable included |
| POWER REQUIREMENTS | Powered from USB port |
| SOFTWARE INCLUDED | PicoScope 6 for Microsoft Windows 7, 8 and 10; 32-bit and 64-bit |
| DIMENSIONS | 5.6” x 3.6” x 0.75” (142 x 92 x 19 mm) |
| WEIGHT | < 0.2 kg (7 oz) |
| Order code | Type | Place an order |
|---|---|---|
| PBT-531 | Shielded Bag Test Kit | { PBT-531} |
