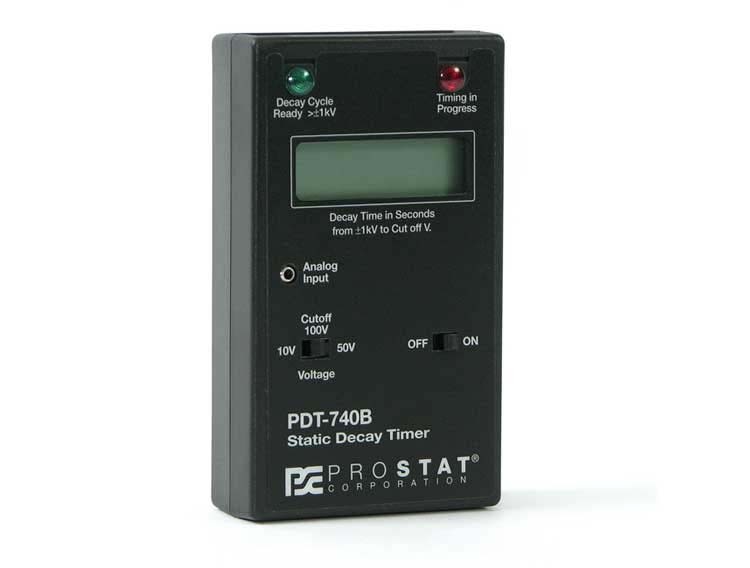

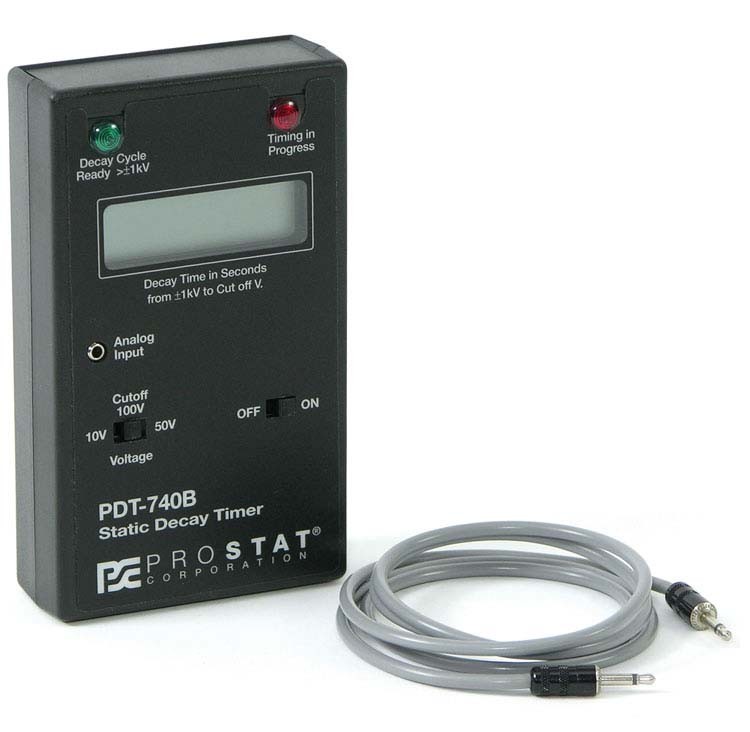

PROSTAT PDT-740B Static Decay Timer

Measure decay times for ionizers and materials

  • Designed to measure the time required for a 1,000 volt charge to dissipate to less than 100, 50 or 10 volts in tenths of a second.
  • Used to evaluate the static decay capabilities of materials, personnel, equipment and other products.
  • Compatible with most portable CPM's and field meters having an analog output of ± 2 (10,000 volts equals 1 volt).
  • Used in conjunction with the PFM-711A Field Meter.
  • Can be used with the PGB-745 Decay Electrodes or PRF-911 Concentric Ring

Download datasheet

Download user manual

Measure Decay Time of Ionizers

The PDT-740B Static Decay Timer is typical of Prostat’s innovative technology and support of Professional ESD Control Managers and Auditors.

This unique accessory is designed to measure the decay time of ionizers from ±1,000 volts to less than 100 volts in accordance with ESD Association’s Ionization Standard ANSI/ESD STM3.1, and measure material decay time to less than 50 volts and less than 10 volts.

Evaluate Ionizers and Packaging Materials

Properly used, the PDT-740B provides decay time measurements for evaluating ionizers, packaging materials, footwear, personnel grounding, production aids, some equipment and many other ESD control products.

Use it with the PFK-100 Field Meter Set

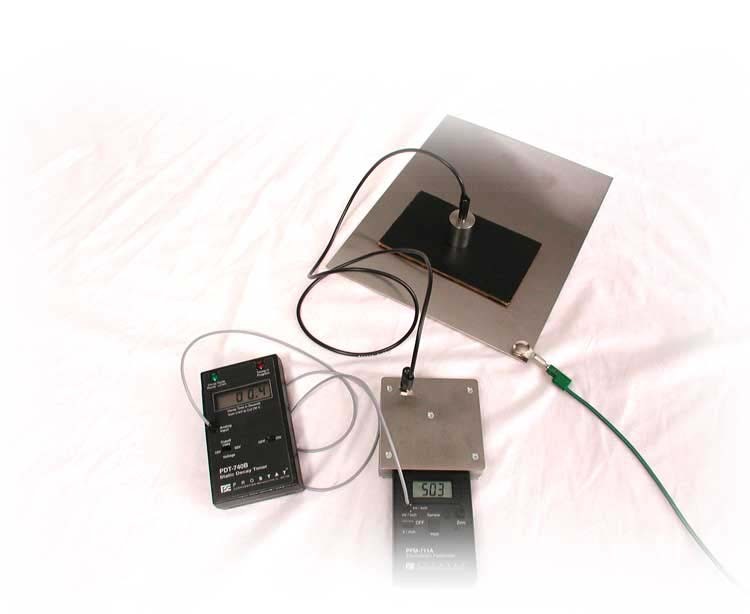

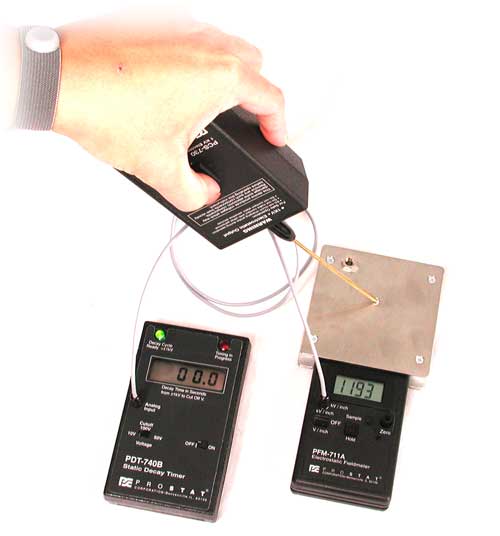

The PDT-740B Static Decay Timer is used with Prostat’s precision portable Charge Plate Monitor kit components, including the PFM-711A Field Meter, CPM-720A Charge Plate Assembly and PCS-730 ±1kV Charging Source.

Measure materials by using the PGB-745

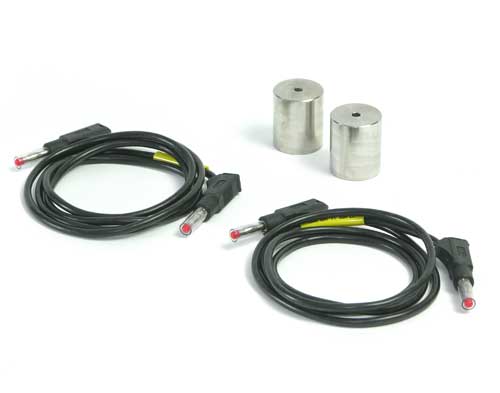

For evaluating materials and other products, additional decay measurement accessories e.g., PGB-745 Decay Electrodes, or PRF-911 Concentric Ring fixtures are recommended.

    Technical Specifications

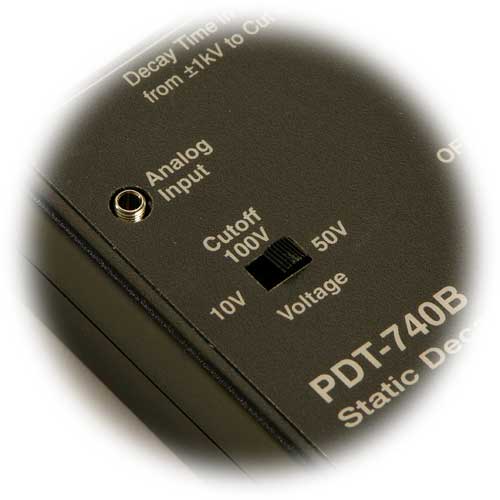

    CONTROLS OFF-ON Cut Off Voltage, 10, 50 and 100 Volts (Selects Voltage to stop timing)
    INDOCATORS

    Green LED:
    Decay Cycle Ready > ± 1kV, CPM voltage > ± 1,000 volts

    Red LED:
    Timing in Progress, CPM voltage decay timing activated LOBAT displayed when battery voltage <6.0 volts

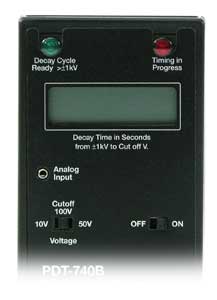

    DISPLAY  Liquid Crystal Display (LCD) displays elapsed decay time from ± 1,000 volts to selected Cut Off voltage in seconds and tenths of a second (00.0)
    POLARITY  Automatically senses Positive & Negative voltage references
    ZERO & RESET  Automatically Resets Timer and Display to 00.0 when CPM voltage > ± 1kV. Reset indicated when Green LED Decay Cycle Ready LED is ON.
    RESPONSE Approximately 200 milliseconds in combination with the CPM-720 and PFM-711A
    TIMING RANGE From 0.2 to 159.9 seconds
    TIMING SETPOINTS Reset when voltage input 100mv ± 2mv (1,000 Field Meter Volts ± 20V)
    Cut Off Voltage @ 100 V: 10mv ± 0.2mv (100 Field Meter Volts ± 2V)
    Cut Off Voltage @ 50 V: 5mv ± 0.2mv (50 Field Meter Volts ± 2V)
    Cut Off Voltage @ 10 V: 1mv ± 0.2mv (10 Field Meter Volts ± 2V)
    ACCURACY Typically < ± 5%
    POWER One (1) standard 9-volt battery, PROCELL, Eveready #216 (NEDA 1604, JIS 006P, IEC 6F22)Eveready #216
    BATTERY LIFE >40 hours typical
    DIMENSIONS  4.50 inches x 2.75 inches x 1.0 inches

    Order code Type Place an order
    PDT-740B Resistance Meter Set {PDT-740B}
