PROSTAT PGB-745 Decay Accessory Set
Measure charge movement and decay time across materials
- Designed for measuring charge movement and decay time of ESD controlled materials.

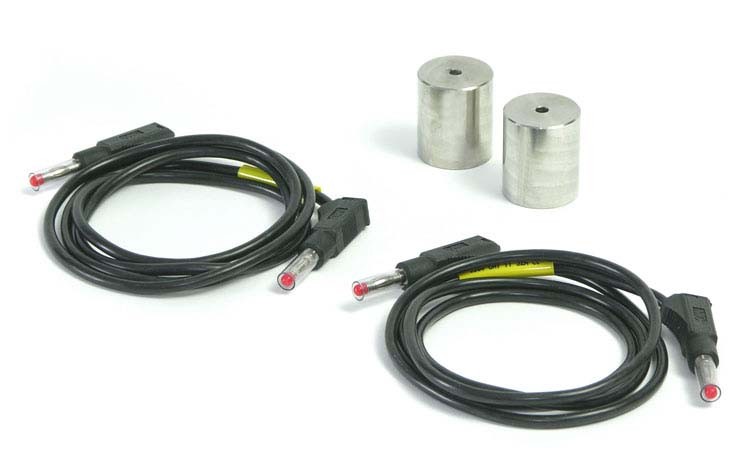

- The set consists of two stainless steel electrodes and two very high resistance test leads selected for this application.
- The high resistance leads minimize leakage during the test cycle and are equipped with male banana plugs.

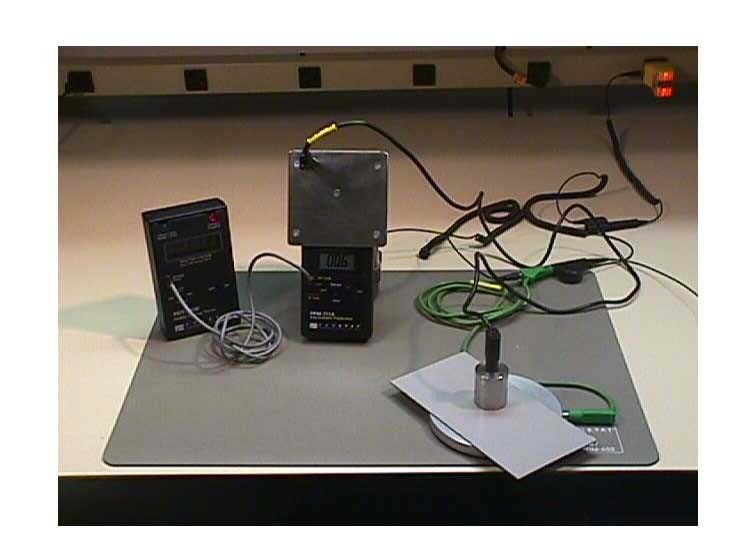

The PGB-745 Decay Accessories Set is specifically designed for measuring charge movement and decay time across ESD controlled materials. The set consists of two stainless steel electrodes and two very high resistance test leads selected for this application. The high resistance leads minimize leakage during the test cycle and are equipped with male banana plugs.
| SIZE | 1 inch (2.54 cm) Diameter 1.185 inches (3 cm) High Standard Banana Receptacle |
| WEIGHT | 4.2 OZ. (115 grams) |
| LENGTH | Black, 36 inch Length |
| RESISTANCE | 5.0x1012 Ohms Insulation Resistance
Note: Standard Male Banana Both Ends |
| Order code | Type | Place an order |
|---|---|---|
| PGB-745 | Decay Accessory Set | {PGB-745} |
