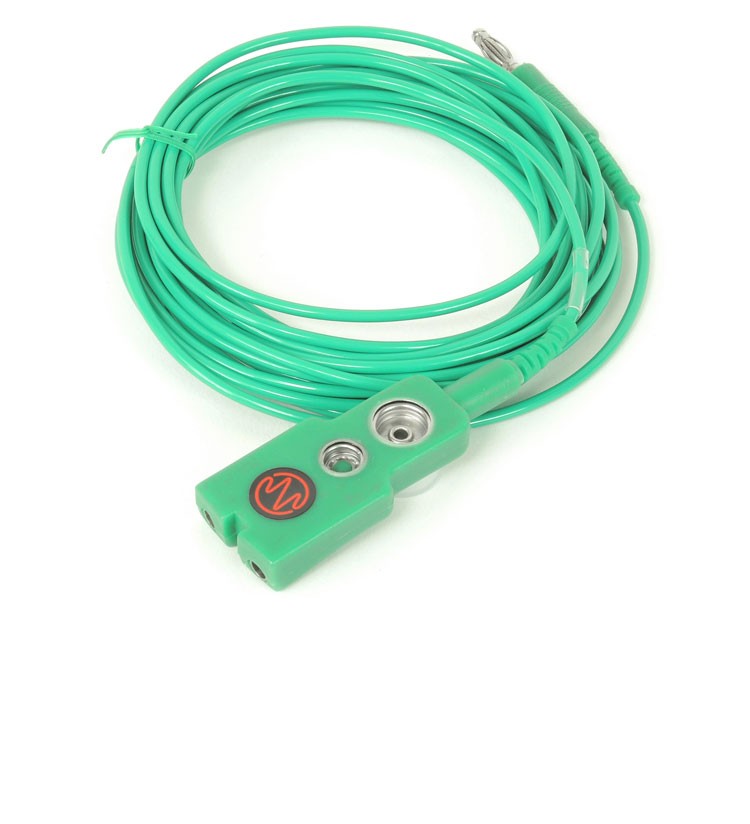

PROSTAT PGC-015G Green 15 Foot Ground Cord
15 foot green straight lead Ground Connector
15 foot straight common point ground cord with two banana receptacles, in low profile housing for connecting two wrist straps. The PGC-015G includes one 1.0x106 (±20%) current limiting resistor molded in the snap housing, a low profile housing with a 10 mm male snap for easy connection to mat, a male banana plug for cord connection to ground.
The PGC-015G is made in accordance with IEC 61340-5-1, ANSI/ESD S20.20, ANSI/ESD S6.1.
- 15 foot long (4.6 meters)
- Low profile housing
- 10 mm male snap
- In accordance with IEC 61340-5-1
- In accordance with ANSI/ESD S20.20
- In accordance with ANSI/ESD S6.1
| LENGTH |
15 feet (4.6 meters)
|
| RESISTOR | One megohm (±10%) resistor molded into snap connection |
| COLOR | Green |
| Order code | Type | Place an order |
|---|---|---|
| PGC-015G | Green 15 Foot Ground Cord | {PGC-015G} |
