PROSTAT PPK-646 Engineers Field Service Kit
Easily Carry Sensitive Devices with this Portable Field Service Kit

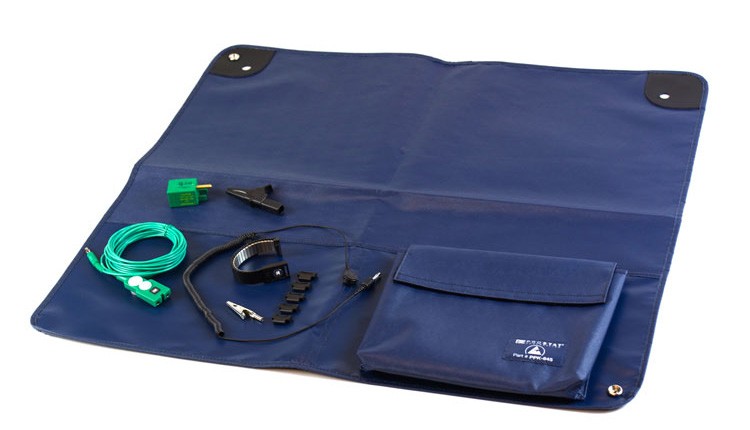

- Portable ESD Field Service Kit that can be set up anywhere an engineer needs to work on sensitive components or devices.
- Features a unique multi-layer construction that is flexible, non-tacky and color stable.
- Includes a 15 foot Ground Cord and a Bulldog Clip.
- Includes a Q007B Common Point Ground Plug.
- Includes an adjustable Metal Band Wrist Strap
- Includes 9-1/2 x 7 inch storage pocket with Velcro sealable closure.
The unique static-dissipative PPK-646 Engineers Field Service Kit is designed to easily carry sensitive devices and other products. This fabric, featuring a unique multi-layer construction is flexible, non-tacky and color stable.

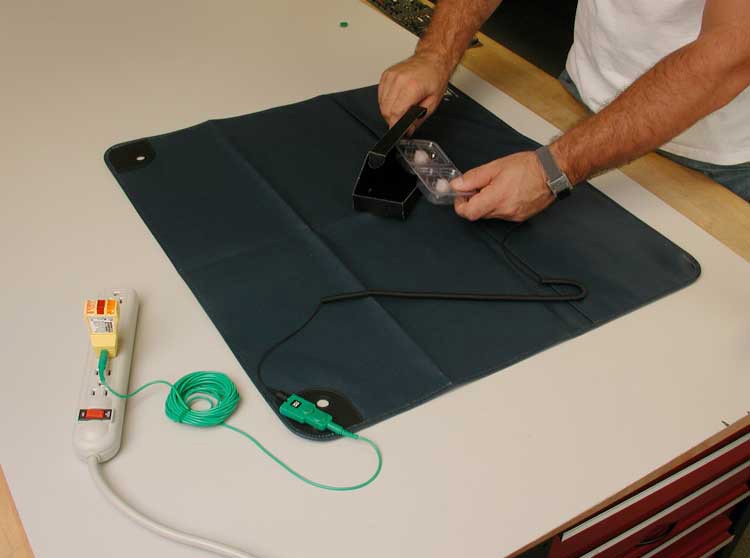

Using this Field Service Kit allows the engineer to fold and set up a workstation anywhere in the plant. Only available in blue, the PPK-646 Engineers Field Service Kit is highly resistant to tearing.
The buried conductive layer is the primary path to ground within the structure. Its construction provides the same resistance-to-ground measurements from any point on the material. It also includes a handy storage pouch for miscellaneous accessories.
The PWS-620 Wrist Strap features a metal wristband that incorporates a patented linking system. It enables you to adjust the strap to fit virtually any wrist size. This unique band comes manufactured in 130mm lengths and can be easily enlarged using one or more of the five 10mm nylon expansion links included. The band is extremely comfortable, as each one is "custom fit" to the user. The wrist strap cord is a heavy duty, lightweight construction of single bundle, laced tensile conductors reinforced with synthetic fibers. The cord incorporates a one megohm (±10%) resistor molded into the snap connection. The ground connection is a standard banana plug.
The Q007B Qube™ is a Common Point Ground Connector that replaces expensive electrical ground circuit testers and indicators with a convenient, cost effective means to connect vital ESD controls to grounded electrical outlets.
PPK-645 FIELD SERVICE MAT
| RESISTANCE RTT | At 10 volts, 12% RH (Rtt) 106 – 107 ohms At 100 volts, 50% RH (Rtt) 106 – 107 ohms |
| RESISTANCE RTG | At 10 volts, 12% RH (Rtt) 106 – 107 ohms At 100 volts, 50% RH (Rtt) 106 – 107 ohms Min / Max Temperature Range -24ºC to 60ºC (-10º F to + 140º F) |
| SIZE | 25 ½ x 24 inches |
| STORAGE POUCH SIZE | 9 ½ x 7 inches |
| THICKNESS | ~ .015 inches |
| COLOR | Blue |
PWS-620 - CUFF ASSEMBLY
| CONSTRUCTION | Made from jewelry quality stainless steel, non-rusting, tested to MIL STD 202 Method 101 |
| THICKNESS | 3.5mm, average weight 33 grams Manufactured to 130mm circumference with 5 10mm nylon expansion l links |
| ELECTRICAL PROPERTIES | Outer band: insulative at 500V per unit millimeter, coating is polyurethane based polymer Inner band: Conductive - <1.0x104 |
| QUALITY CONTROL | Each band is date and lot coded to total quality control and auditing |
| ELASTICITY | Expansion ratio 1.5:1 |
| SNAP/SIZE | 4mm post snap for ground cord, non rusting, tested to MIL STD 202 Method 101 |
| COLOR | Black |
| MARKINGS | Prostat logo |
| MEETS OR EXCEEDS | DOD-HDBK-263, DOD-STD-1686, EOS/ESD Std. No. 1-1987, EN10015/1 |
| UL LISTED | File E 157590 |
PWS-620 - CORD ASSEMBLY
| CORD | Heavy Duty, Lightweight construction of Single bundle, laced tensile conductors reinforced with synthetic fibers. Cord Diameter: 0.06" Coil Diameter: 0.26" Alligator clip supplied. |
| RESISTOR | One megohm (±10%) resistor molded into snap connection |
| GROUND CONNECTION |
Standard banana plug
|
| WARRANTY | Warranted for One Year against mechanical and electrical defects. |
| CORD EXTENSION | Full extension greater than 13 feet; Working Length greater than 10 feet. |
| TESTED | Provides over 100,000 bending cycles per EOS/ESD-S1.0-1987 procedures. |
| WARNING | A one-megohm resistor has been molded into the plastic cap on the ground cord fastener. DO NOT REMOVE. If it becomes damaged, replace ground cord immediately. Do not use in areas where the individual may come in contact with electrical circuits exceeding 250 volts. |
| CAUTION: | The Prostat wrist strap is for static control. It will not reduce or increase your risk of receiving electrical shock when using or working on electrical equipment. Follow the same procedures you would use without wrist straps, including: * Make certain that equipment having a grounding type plug is properly grounded. * Make certain that you are not in contact with grounded objects other than through the strap. |
Q007B COMMON POINT GROUND CONNECTOR (QUBE)
| DIMENSIONS (LxWxH): | 2.12" x 0.9" x 0.9" (5.385cm x 2.286cm x 2.2286cm) |
| CASE MATERIAL | Fire Retardant ABS |
| COLOR | Green |
| CONFIGURATION | 3 standard banana jack inputs, Brass Grounding Pin, 2 FR ABS Spades |
PGC-015G GREEN 15 FOOT GROUND CORD
| LENGTH | 15 feet (4.6 meters) |
| RESISTOR | One megohm (±10%) resistor molded into snap connection |
| COLOR | Green |
| Order code | Type | Place an order |
|---|---|---|
| PPK-646 | Engineers Field Service Kit | {PPK-646} |
