PROSTAT PRF-912B Miniature Concentric Ring Set

For precision resistance measurement of small areas up to 1.0 x 1012 ohms.

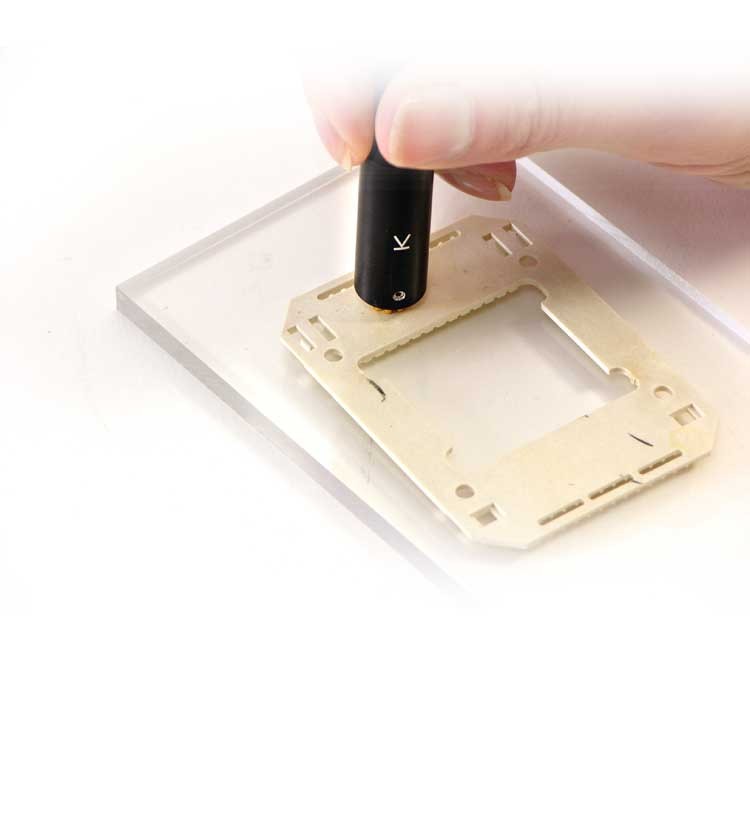

  • Measures surface resistance of small areas up to 1.0x1012 ohms.
  • Measurement Area: 0.35" (8.89mm).
  • Spring loaded contact pins.

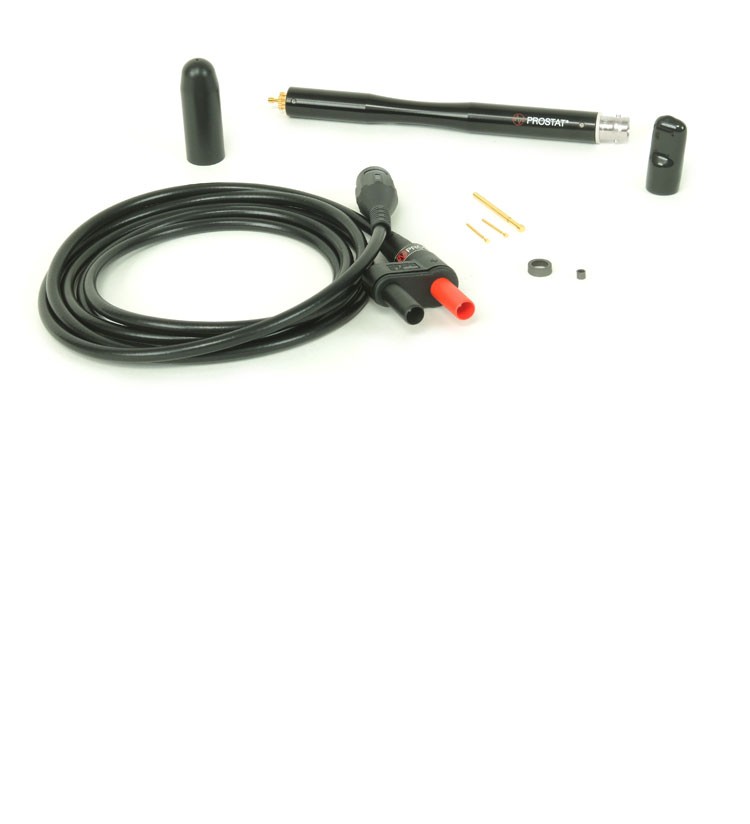

  • Includes two (2) each spare outer contact pins and one (1) each spare inner center electrode contact pin.

Download datasheet

Download user manual

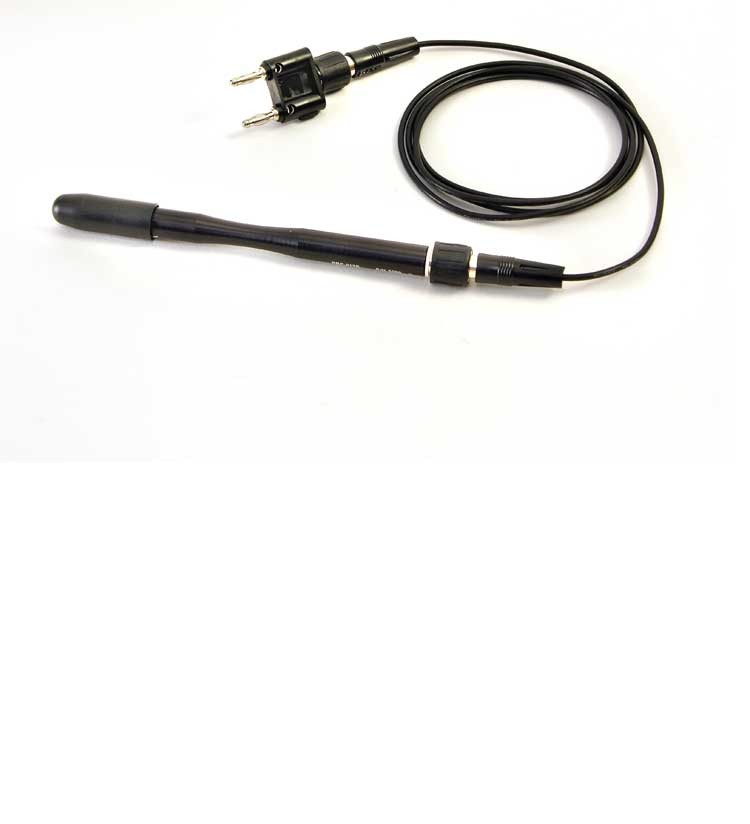

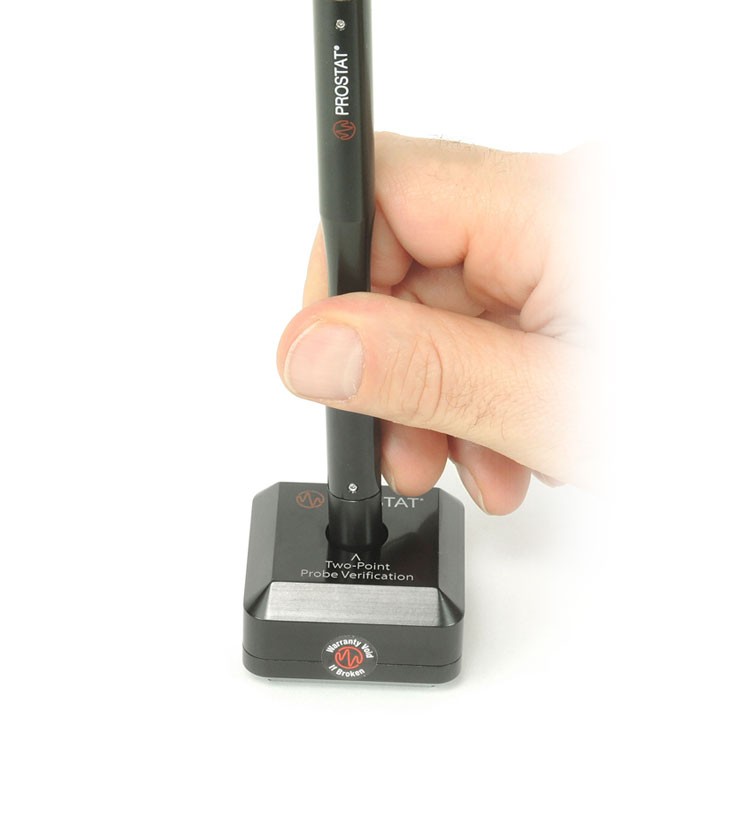

The PRF-912B Miniature E12 Micro Probe Set accurately measures surface resistance of small areas up to 1.0x1012 ohms. It consists of a PRF-912B Concentric Resistance Fixture, shielded cable equipped with BNC connectors, and a BNC to male banana instrument adapter. The optional PRV-913B Dual Verification Fixture is designed to confirm the proper operation of all of the Prostat Micro Probes Sets.

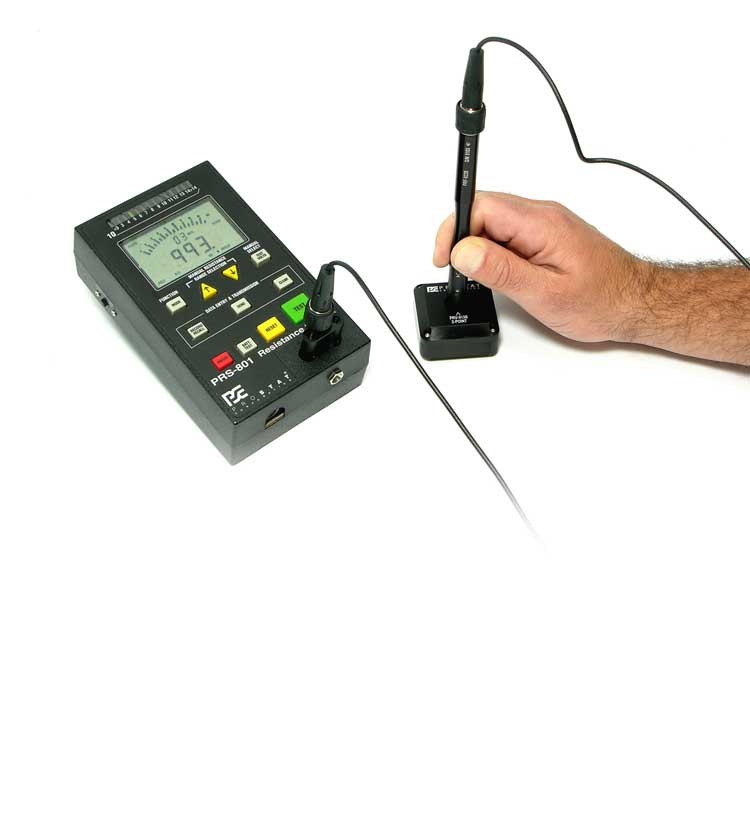

The PRF-912B is designed to work with a precision wide range resistance instrument, such as the PRS-801 Resistance System, or PRS-812 Resistance Meter or PAS-853B Wide Range Ohmmeter.

Technical Specifications

Range
0.9 – 1.0x1012 Ohms (1.0E+12)
ASTM D-257
Correction from ohms to ohms/square Multiply by 10
Dimensions Length: 5.9 inches (150mm) without probe cover.
6.5 inches (165mm) with probe cover.
Probe diameter 0.5 inches (12.7mm).
Probe cover outer diameter 0.63 inches (16mm).
Probe Weight 1.5 ounces (43 grams)
Finish
Black anodized
Dielectric Material Teflon

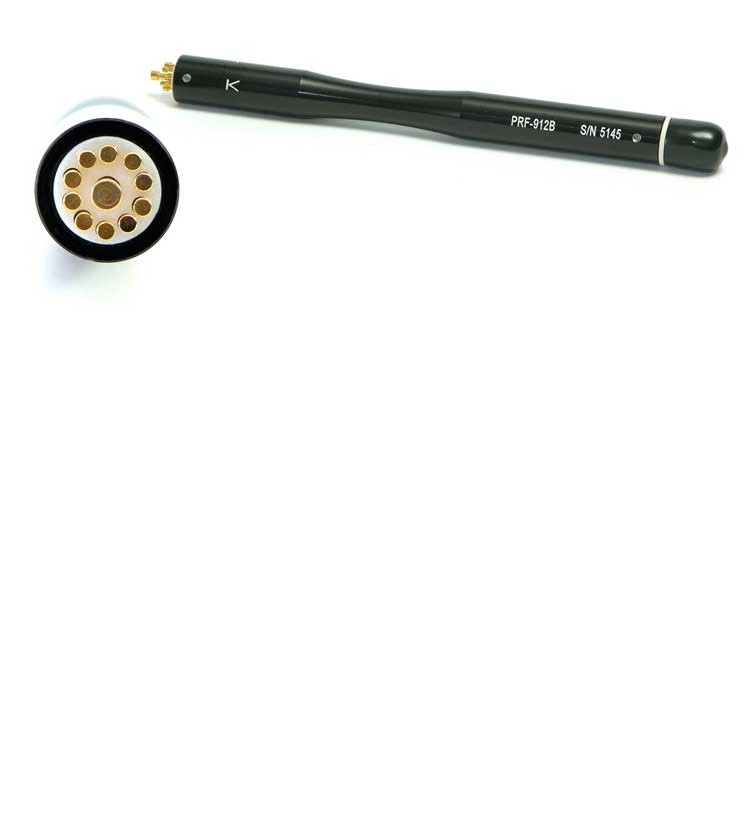

Contact Size Inner (Center) Contact Probe: 0.1 inches (2.54mm).
Outer Contact Probes: Ten each 0.06 inches (1.59mm) diameter at 0.258 inches (6.56mm) bolt circle.
Min. Sample
0.32 inches (8.2mm) diameter
Probe Spring
Force/Test 3.5 pounds (1.6 kg)
Probe Travel
0.3 inches (7.8mm)
Connection
BNC with outer source and inner sense connections
Cable
RG-174 coaxial cable equipped with insulated BNC couplers, and BNC/Banana adapter for connection to Prostat PRS-801 Resistance System.
Power
Not applicable. Fixture powered by resistance instrument.
Order code Type Place an order
PRF-912B Miniature Concentric Ring Set {PRF-912B}
