PROSTAT PRV-913B Dual Verification Fixture

VERIFY THE FUNCTIONALITY OF THE PRF-912B AND PRF-922B PROBES

  • Dual side fixture for the PRF-912B and PRF-922B
  • Ensures spring loaded measurement pins compress and move freely
  • Verifies that measurement pins are properly connected to the probe circuitry
  • Provides a concentric ring reference measurement of 1.0x106 ohms
  • Provides a 1-megohm reference measurement for two-point probes
  • Certificate of Calibration Traceable to NIST included

Download datasheet

Download user manual

Ensures your Miniature Probes functions as Intended

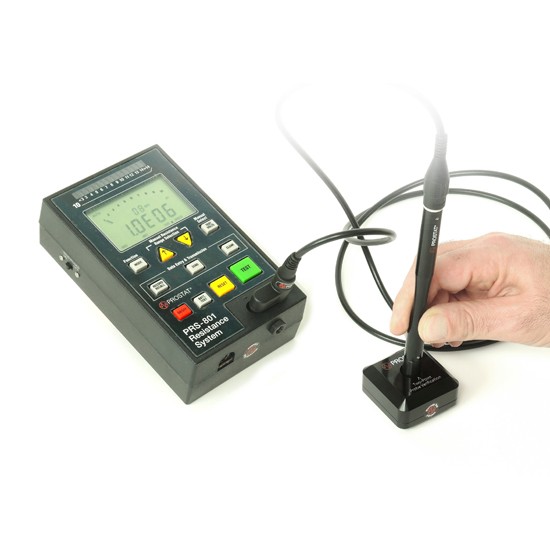

The PRV-913B is designed to verify that a Prostat mini probe resistance fixtures, either the PRF-912B Miniature Concentric Ring or the PRF-922B Miniature Two-Point Probe, physically functions as intended. That is, the spring loaded contacts compress and extend freely and are electrically connected to the probe’s circuitry.

Provides a Reference to Confirm Functionality

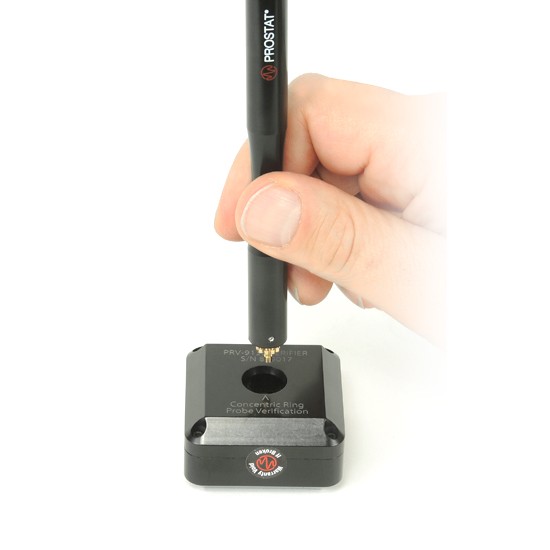

Properly used, the PRV-913B insures that all PRF-912B & PRF-922B spring loaded test probes make defined contact with the reference surface inside the verification fixture. If good contact is made, the fixture provides a 1-megohm (1.0×106 ohms) reference measurement (±1%) with a nominal variance of <2%, i.e., 9.98x105 to 1.02×106 ohms.

Consists of a High Resistance Circuit Board
Approximately 2 inches (50.1mm) square by 0.82 inches (21mm) thick, the PRV-913B consists of a high quality black anodized housing and high resistance circuit board.

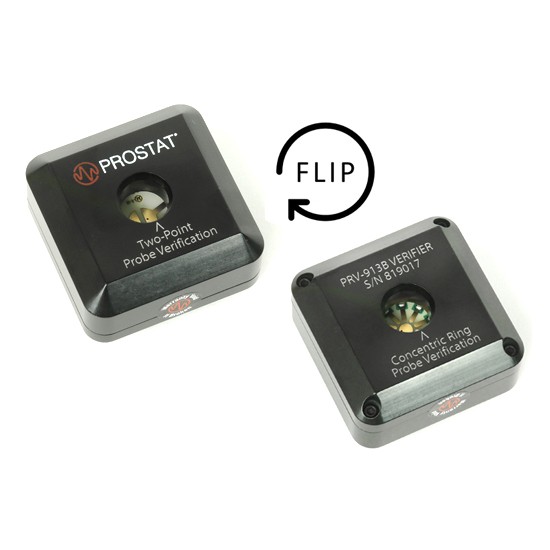

2 in 1 Fixture
One side of the PRV-913B circuit assembly incorporates an array of ten (10) each 10 megohm precision (±1%) resistors in parallel, connecting the center pad to each of the ten peripheral trace pads. It provides a specific reference resistance of 1.0×106 ohms (<±2%) for the Concentric Ring side of the fixture. The 2-Point Probe side of the fixture incorporates a 1.0x106 ohms (<±1%) resistor connected across two test pads.

General Specifications

Characteristics
Finish Black anodized
Contact Pads Copper substrate with nickel and hard gold plating
Color Black
Diemsnion 50.8 mm x 50.8 mm x 28.5 mm
2.0” x 2.0” x 1.12”
Weight 5.29 oz (150g)
Warranty 1 Year Limited Warranty

Resistors

Characteristics  Sides
  Two-Point Side Concentric Ring Ring
Fixture Resistance 1.0x106 ohms <±5% 1.0x106 ohms <±5%
Number of Resistors 1 each 10 megohm (1.0x106) 10 each 10 megohm (1.0x107)
Resistor Tolerances ±1% ±1%
Power N/A N/A
Order code Type Place an order
PRV-913B Dual Verification Fixture {PRV-913B}
