S Series Tip Cartridges

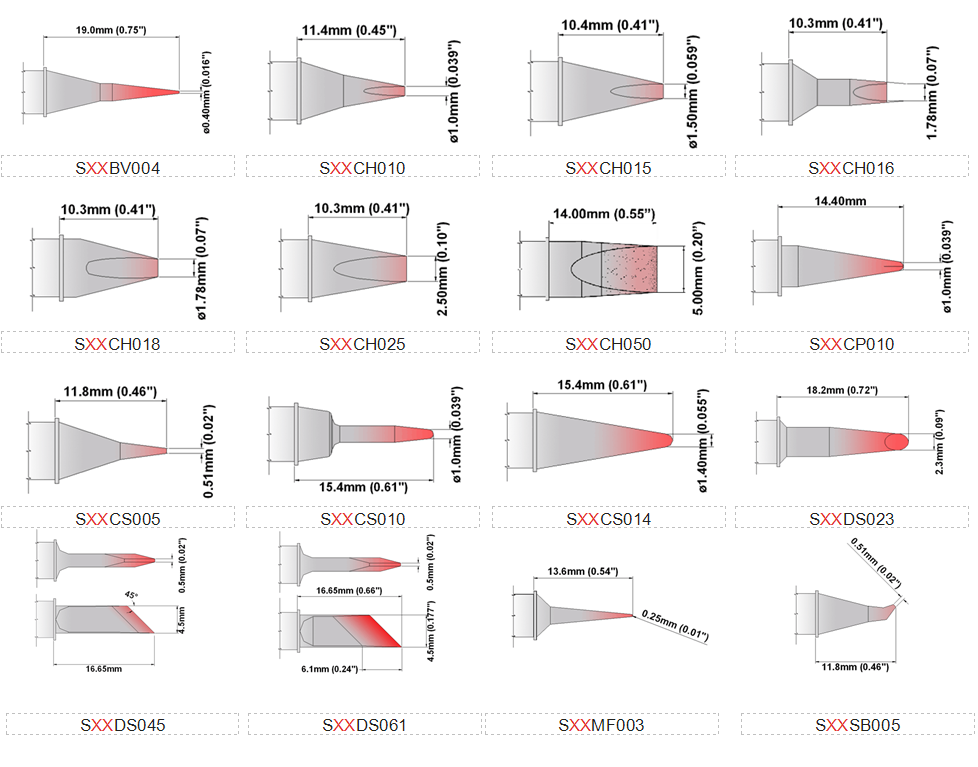

S SERIES TIP CARTRIDGES (TMT-2000S STATIONS / METCAL/OKI SP200)
S SERIES - MICRO FINE TIPS
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Desc | |||
| S60CH006 | {S60CH006} | S75CH006 | {S75CH006} | S80CH006 | {S80CH006} | Chisel forma 30° 0.6mm (0.024") new!!! | |||
| S60CH008 | {S60CH008} | S75CH008 | {S75CH008} | S80CH008 | {S80CH008} | Chisel forma 30° 0.8mm (0.031") new!!! | |||
| S60C001 | {S60C001} | S75C001 | {S75C001} | S80C001 | {S80C001} | Conical 0.10mm (0.004") new!!! | |||
| S60C002 | {S60C002} | S75C002 | {S75C002} | S80C002 | {S80C002} | Conical 0.20mm (0.008") new!!! | |||
| S60C004 | {S60C004} | S75C004 | {S75C004} | S80C004 | {S80C004} | Conical 0.40mm (0.016") new!!! | |||
| S60BV007 | {S60BV007} | S75BV007 | {S75BV007} | S80BV007 | {S80BV007} | Bevel 0.7mm (0.028") new!!! | |||
S SERIES TIP CARTRIDGES (TMT-2000S, SP200, MFR SYSTEMS)
| 600°F Type Cartridges (325°C - 358°C) | 700°F Type Cartridges (350°C - 398°C) | 800°F Type Cartridges (420°C - 475°C) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| TT Part# | Place an order | TT Part# | Place an order | TT Part# | Place an order | Description | |||
| S60BV004 *SSC-645A |
{S60BV004} | S75BV004 *SSC-745A |
{S75BV004} | S80BV004 *SSC-845A |
{S80BV004} | Conical Sharp 0.4mm (0.016") | |||
| S60BV011 | {S60BV011} | S75BV011 | {S75BV011} | S80BV011 | {S80BV011} | Bevel 60° 1.10mm (0.04") | |||
| S60BV020 | {S60BV020} | S75BV020 | {S75BV020} | S80BV020 | {S80BV020} | Bevel 45° 2.00mm (0.08") új!!! | |||
| S60BV030 | {S60BV030} | S75BV030 | {S75BV030} | S80BV030 | {S80BV030} | Bevel 45° 3.00mm (0.12") új!!! | |||
| S60BV040 | {S60BV040} | S75BV040 | {S75BV040} | S80BV040 | {S80BV040} | Bevel 45° 4.00mm (0.16") új!!! | |||
| S60BV050 | {S60BV050} | S75BV050 | {S75BV050} | S80BV050 | {S80BV050} | Bevel 45° 5.00mm (0.20") új!!! | |||
| S60BV060 | {S60BV060} | S75BV060 | {S75BV060} | S80BV060 | {S80BV060} | Bevel 45° 6.00mm (0.24") új!!! | |||
| S60BVF010 | {S60BVF010} | S75BVF010 | {S75BVF010} | S80BVF010 | {S80BVF010} | Bevel 60° 1.00mm (0.04"), Tin Area Face | |||
| S60BVF020 | {S60BVF020} | S75BVF020 | {S75BVF020} | S80BVF020 | {S80BVF020} | Bevel 45° 2.00mm (0.08"), Tin Area Face | |||
| S60BVF030 | {S60BVF030} | S75BVF030 | {S75BVF030} | S80BVF030 | {S80BVF030} | Bevel 45° 3.00mm (0.12"), Tin Area Face | |||
| S60BVF050 | {S60BVF050} | S75BVF050 | {S75BVF050} | S80BVF050 | {S80BVF050} | Bevel 45° 5.00mm (0.20"), Tin Area Face | |||
| S60BVF060 | {S60BVF060} | S75BVF060 | {S75BVF060} | S80BVF060 | {S80BVF060} | Bevel 45° 6.00mm (0.24"), Tin Area Face | |||
| S60CB012 | {S60CB012} | S75CB012 | {S75CB012} | S80CB012 | {S80CB012} | Chisel 30° 1.2mm (0.05") new!!! | |||
| S60CH010 *SSC-625A |
{S60CH010} | S75CH010 *SSC-725A |
{S75CH010} | S80CH010 *SSC-825A |
{S80CH010} | Chisel 30° 1.0mm (0.04") | |||
| S60CH010A *SSC-671A |
{S60CH010A} | S75CH010A *SSC-771A |
{S75CH010A} | S80CH010A *SSC-871A |
{S80CH010A} | Chisel 30° 1.0mm (0.04") new!!! | |||
| S60CH015 *SSC-638A |
{S60CH015} | S75CH015 *SSC-738A |
{S75CH015} | S80CH015 *SSC-838A |
{S80CH015} | Chisel 30° 1.50mm (0.06") | |||
| S60CH016 *SSC-672A |
{S60CH016} | S75CH016 *SSC-72A |
{S75CH016} | S80CH016 *S80CH016 |
{SSC-872A} | Chisel 30° 1.78mm (0.07") | |||
| S60CH018 *SSC-637A |
{S60CH018} | S75CH018 *SSC-737A |
{S75CH018} | S80CH018 *SSC-837A |
{S80CH018} | Chisel 30° 1.78mm (0.07") | |||
| S60CH025 *SSC-636A |
{S60CH025} | S75CH025 *SSC-736A |
{S75CH025} | S80CH025 *SSC-836A |
{S80CH025} | Chisel 30° 2.5mm (0.10") | |||
| S60CH032 | {S60CH032} | S75CH032 | {S75CH032} | S80CH032 | {S80CH032} | Chisel 90° 3.20mm (0.13") | |||
| S60CH032A | {S60CH032A} | S75CH032A | {S75CH032A} | S80CH032A | {S80CH032A} | Chisel 30° 3.20mm (0.13") új!!! | |||
| S60CH050 *SSC-617A |
{S60CH050} | S75CH050 *SSC-717A |
{S75CH050} | S80CH050 *SSC-817A |
{S80CH050} | Chisel 30° 5.0mm (0.20") | |||
| S60CP010 *SSC-606P |
{S60CP010} | S75CP010 *SSC-706P |
{S75CP010} | S80CP010 *SSC-806P |
{S80CP010} | Conical Sharp 1.0mm (0.04") | |||
| S60CS005 *SSC-622A |
{S60CS005} | S75CS005 *SSC-722A |
{S75CS005} | S80CS005 *SSC-822A |
{S80CS005} | Conical Sharp 0.5mm (0.02") | |||
| S60CS010 *SSC-601A |
{S60CS010} | S75CS010 *SSC-701A |
{S75CS010} | S80CS010 *SSC-801A |
{S80CS010} | Conical Sharp 1.00mm (0.04") | |||
| S60CS014 *SSC-674A |
{S60CS014} | S75CS014 *SSC-774A |
{S75CS014} | S80CS014 *SSC-874A |
{S80CS014} | Conical Sharp 1.4mm (0.055") | |||
| S60DS023 *SSC-639A |
{S60DS023} | S75DS023 *SSC-739A |
{S75DS023} | S80DS023 *SSC-839A |
{S80DS023} | Hoof 3.10mm (0.122") | |||
| S60DS035 | {S60DS035} | S75DS035 | {S75DS035} | S80DS035 | {S80DS035} | Knife 3.50mm (0.138") új!!! | |||
| S60DS045 *SSC-661A |
{S60DS045} | S75DS045 *SSC-761A |
{S75DS045} | S80DS045 *SSC-861A |
{S80DS045} | Knife 4.50mm (0.177") | |||
| S60DS061 *SSC-673A |
{S60DS061} | S75DS061 *SSC-773A |
{S75DS061} | S80DS061 *SSC-873A |
{S80DS061} | Knife 4.50mm (0.177"), Increased Tin | |||
| S60MF003 * SSC-690A |
{S60MF003} | S75MF003 *SSC-790A |
{S75MF003} | S80MF003 *SSC-890A |
{S80MF003} | Micro Fine 0.25mm (0.01") | |||
| S60SB005 *SSC-626A |
{S60SB005} | S75SB005 *SSC-726A |
{S75SB005} | S80SB005 *SSC-826A |
{S80SB005} | Bent Sharp 30° 0.51mm (0.02") | |||
| S60WV031 | {S60WV031} | S75WV031 | {S75WV031} | S80WV031 | {S80WV031} | Hoof w/Dent 60° 3.10mm (0.122") | |||
| S60WV080 | {S60WV080} | S75WV080 | {S75WV080} | N/A | N/A | Hoof w/Dent 45° 8.00mm (0.31") | |||
*Original Part #
