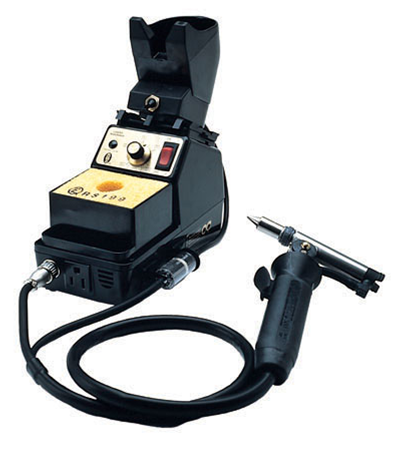

SOLDAPULLT HOT TIP- ZD505VDX-230, ZD505-230
- Outstanding performance and cost-efficient station ideal for heavy duty applications that require maximum heat transfer (requires shop air 60-90 psi)
- Powerful 70W high output PTC element makes heavy multi-layer boards easy to desolder
- Adjustable and ergonomic hand tool design provides comfortable working angles
- Easy to maintain and calibrate with external calibration feature
- ESD safe
- 18 month warranty
- lead free
| Contents | |
|---|---|
| ZD505VDX | Self-Contained deluxe hot tip desoldering station includes HT500-2 hand tool with ZD13 tip |
| SH230 | Sponge holder includes RS199 cleaning sponge |
| Accessory Kit | |
|---|---|
| WT623 | Tip wrench, dual open end, 1/4” & 3/4” |
| WT619 | Tip wrench, for retaining sleeve |
| WP556 | WIGAPRY® mini screwdriver and calibration aid tool |
| CS468 | Tip cleaning shaft for desoldering tips |
| CS468-1 | Tip cleaning shaft for small desoldering tips |
| AN112 | Anti-Seize compound |
| OL111 | O-Ring lube |
| MS229 | 1 pc. mica sheet for HT500 |
| AF629 | 1 pc. felt filter for AF110 |
| AF625 | 1 pc. felt filter for HT500 |
| AF040 | 1 pc. foam filter for AF110 |
| Specifications | |
|---|---|
| Power Requirements | 230V, 50Hz |
| Power Rating | 20W - 150W |
| Heater Rating | 24V, 70W |
| Weight | 1,8 kg |
| Overall Dimensions | 127 mm x 241 mm x 229 mm |
| Temperature Range | 205°C - 427°C |
| Temperature Regulation | ±3ºC |
| Tip-to-Ground Voltage Leakage/Resistance | < 2mV / < 2 ohms |
| Order code | Type | Place an order |
|---|---|---|
| ZD505VDX230 | Includes PM100 vacuum generator and HT500 hand tool with ZD13 tip | {ZD505VDX230} |
| ZD505-230 | Requires External Vacuum | {ZD505-230} |
