SUPERCUT

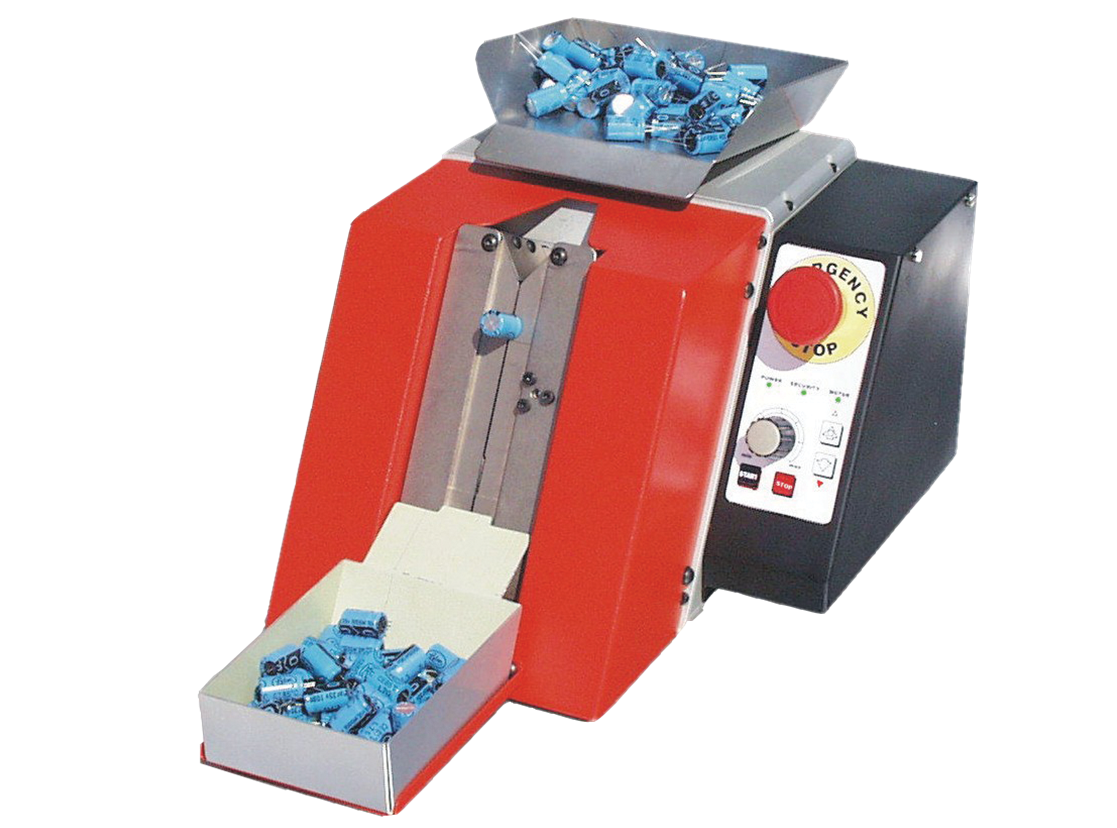

SUPERCUT is a machine made for cutting radial loose components and, with an optional adapter, also taped components. It is extremely compact and sturdy and all mechanical parts have been designed to ensure the highest quality and the longest possible life. The loading of components is easy and quick, and the production is high because there is no down time due to the automatic transfer and ejection of the components. The transfer speed is adjustable. The small sliding door in front allows for lead length adjustements. There is an optional adapter for radial taped components.

  L d D
Min mm: 3 0,4 1
Max mm: 12 0,8 15
Specifications
Production rate up to 3000 pcs/hr
Dimensions 400 x 270 x 270(H)mm
Weight 14Kg
R



Order code Type Place an order
7915.148N SUPERCUT, 220V-50/60 Hz {7915.148N}
7915.160 BR3, P=12,7 mm {7915.160}
7915.159 BR3, P=15 mm {7915.159}
