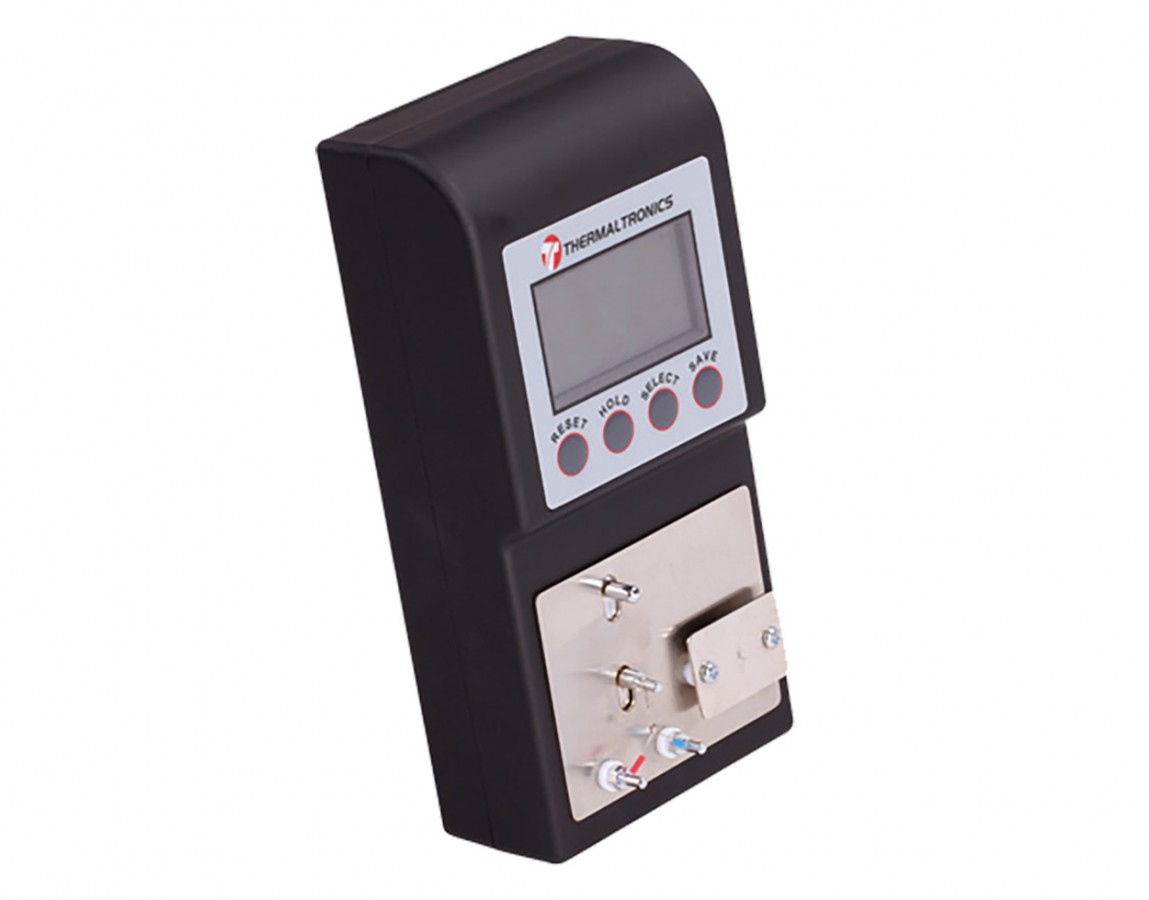

TMT-ST10 Solder Tip Tester
The TMT-ST10 is a three-in-one tip tester, providing tip temperature measurement, tip to ground resistance and tip to ground AC voltage leakage.Test data can be easily saved to memory and exported for data analysis.
- Data save and export
- Lightweight and easy to use
- Accurately test tip temperature
- Accurately test tip to ground resistance and tip to ground AC leakage
- 1 year warranty
| SPECIFICATIONS | |
|---|---|
| Input Line Voltage | DC 9V Battery |
| Temperature | Test Range: 0oC – 600oC Resolution: 1oC Accuracy: 1% ±3oC |
| Resistance | Test Range: 0 – 100 Ohm Resolution: 0,1 Ohm Accuracy: ± (1%+2 byte) |
| Voltage | Test Range: 0 – 100 mV (AC) Resolution: 0,1 mV (AC) Accuracy: ± (3%+2 byte) |
| Thermal Sensor | K Type Thermocouple |
| Size | 85 x 175 x 48 mm |
| Weight | 0,35 kg |
| LCD Display | 48 x 26,5 mm |
| USB Port | Mini USB Port |
| Data Storage | 32 640 Events |

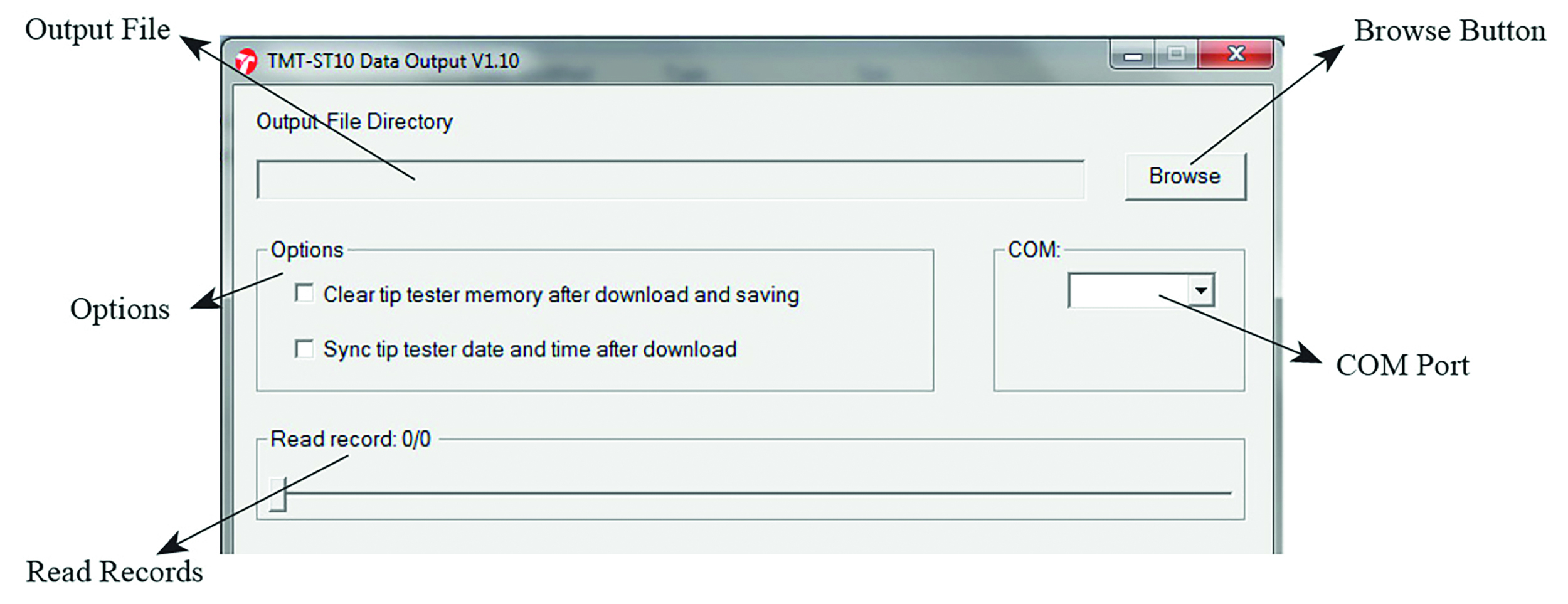

| Output file |
| Options |
| Read Records |
| Browse Button |
| COM Port |
| Order code | Type | Place an order |
|---|---|---|
| TMT-ST10 | MT-ST10 THERMALTRONICS Solder Tip Tester | {TMT-ST10} |
