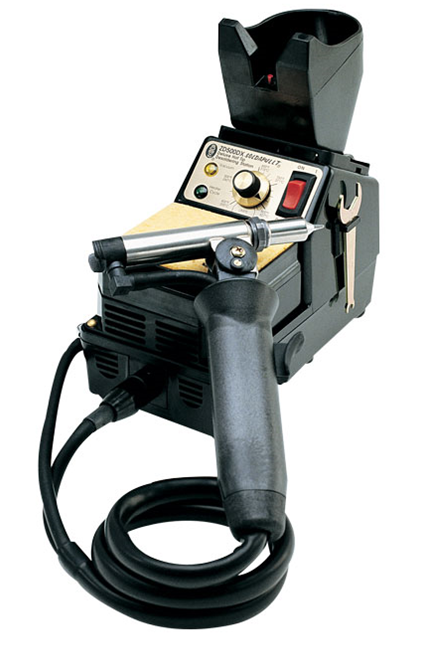

SOLDAPULLT HOT TIP- ZD500DX-230
- A self-contained and high performance vacuum desoldering station ideal for heavy duty applications that require maximum heat transfer
- Powerful 70W high output PTC heating element makes heavy multi-layer boards easy to desolder
- Adjustable and ergonomic hand tool design offers four comfortable working angles
- Easy to maintain and calibrate with external calibration feature
- ESD safe
- 18 month warranty
- lead free
| Contents | |
|---|---|
| ZD500DX | Self-Contained deluxe hot tip desoldering station includes HT500-2 hand tool with ZD13 tip |
| SH232 | Sponge holder with RS199 cleaning sponge |
| Accessory Kit | |
|---|---|
| WT623 | Tip wrench, dual open end, 1/4” & 3/4” |
| WT619 | Tip wrench, for retaining sleeve |
| WP556 | WIGAPRY® mini screwdriver and calibration aid tool |
| CS468 | Tip cleaning shaft for desoldering tips |
| CS468-1 | Tip cleaning shaft for small desoldering tips |
| AN112 | Anti-Seize compound |
| OL111 | O-Ring lube |
| MS229 | 1 pc. mica sheet for HT500-2 |
| AF629 | 1 pc. felt filter for AF110 |
| AF625 | 1 pc. felt filter for HT500 |
| AF040 | 1 pc. foam filter for AF110 |
| Specifications | |
|---|---|
| Power Requirements | 230V, 50Hz |
| Power Rating | 95W - 200W |
| Heater Rating | 24V, 70W |
| Weight | 2,7 kg |
| Overall Dimensions | 127 mm x 216 mm x 229 mm |
| Temperature Range | 205°C - 427°C |
| Temperature Regulation | ±3ºC |
| Tip-to-Ground Voltage Leakage/Resistance | < 2mV / < 2 ohms |
| Order code | Type | Place an order |
|---|---|---|
| ZD500DX230 | - | {ZD500DX230} |
