TREK electrostatic voltmeters 876 / 884

Electrostatic voltmeters for accurate non-contacting measurements of the electrostatic surface voltage for ESD applications in ionized or non-ionized environments.

PRODUCT HIGHLIGHTS

Accurately measures surface voltage at a wide range of spacings
No need to maintain a fixed spacing
Chopper stabilized for drift-free operation in ionized environments
NIST-traceable Certificate of Calibration provided with each unit

APPLICATIONS

Measurement of electrostatic surface charge build up
Manufacturing processes
Electronic assembly testing
Semiconductor material testing
Dissipative material testing
Automotive electronics testing
ESD Auditing and troubleshooting

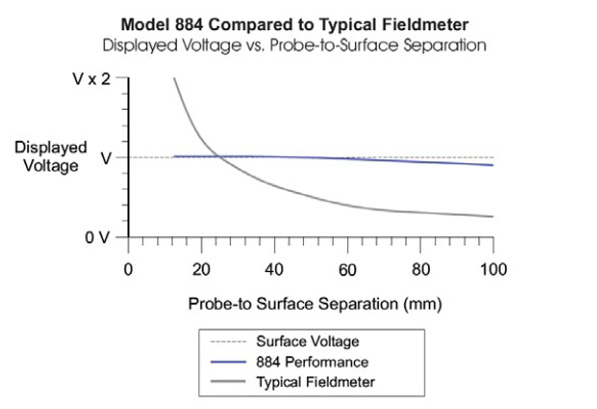

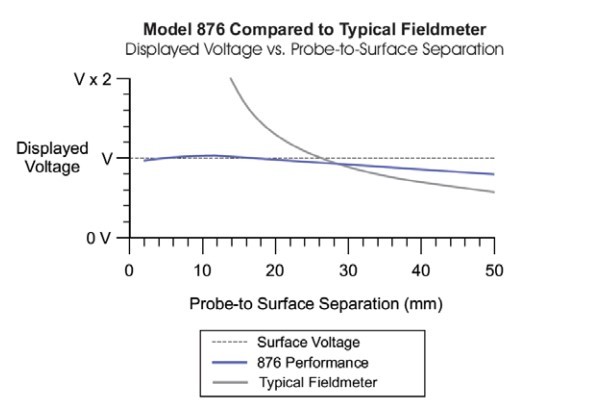

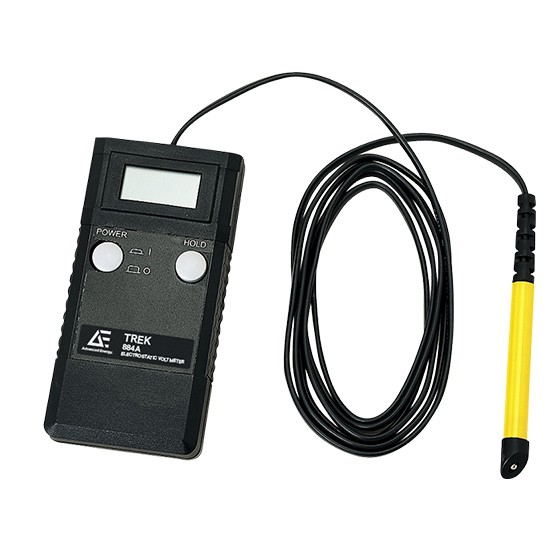

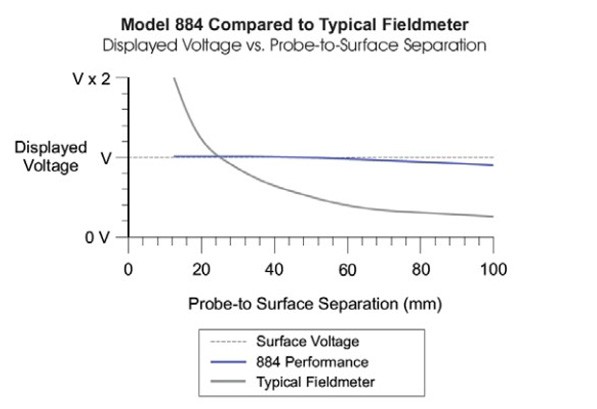

The Trek^® 876 (±2kV) and Trek 884 (±20kV) hand held electrostatic voltmeters provide accurate, noncontacting measurements of electrostatic surface voltage for ESD applications in either ionized or non-ionized environments. These two voltmeters utilize a measurement technique that overcomes the disadvantage of the typical hand held field-meter by providing surface voltage measurements which are essentially independent of the sensor probe-to-measured surface spacing.

Technical data

	Trek 876¹	Trek 884²
Measurement Range	0 to ±2 kVDC	0 to ±20 kVDC
Measurement Accuracy Better than ±5% of full scale over the entire recommended probeto-surface separation	5 to 25 mm	30 to 60 mm

¹ All Trek 876 specifications are with a probe-to-surface separation of 15 mm, ±10 mm
² All Trek 884 specifications are with a probe-to-surface separation of 45 mm, ±15 mm

Mechanical Specifications

	Trek 876	Trek 884
Dimensions (H x W x D)	31 x 59 x 173 mm (1.2 x 2.4 x 6.8 in)	31 x 59 x 183 mm (1.2 x 2.4 x 7.3 in)
Weight	0.2 kg (0.44 lb) with battery	0.2 kg (0.44 lb) with battery

Features

	Trek 876	Trek 884
Power On/Off	Push-button switch
Stability	Drift with Time: Less than 600 ppm/hour, noncumulative Drift with Temperature: Less than 600 ppm/°C
Operating Time	Approximately 8 hours with a full battery
Hold	A momentary push-button will command the voltage display to hold the value displayed until the switch is released
Voltage Display Range	3 ½ digit liquid crystal display
Range	0 to ±1999 V	0 to ±19.99 kV
Resolution	1 V	10 V
Zero Offset	Less than ±1 count	Less than ±4 counts
Sampling Rate	2.5 readings per second

Electrical Specifications

Power Requirements	One 9 V NEDA 1604 battery, IEC 6R61 battery or equivalent
Ground Receptacle	Snap-on connector

Environmental Specifications

Temperature	15 to 35°C (59 to 95°F)
Relative Humidity	85%, noncondensing

Included Accessories

23206	Operator’s Manual (Trek 876)
23207	Operator’s Manual (Trek 884)
N9079	Ground Reference Cable Assembly¹
F1003R	9 V Battery

¹ Always use the original grounding cord without any safety resistor. Failure to do so will lead to measurement errors.

Order code	Type	Place an order
Trek 876	TREK electrostatic voltmeters 876	{Trek 876}
Trek 884	TREK electrostatic voltmeters 884	{Trek 884}
43469	Carrying Case	{43469}
